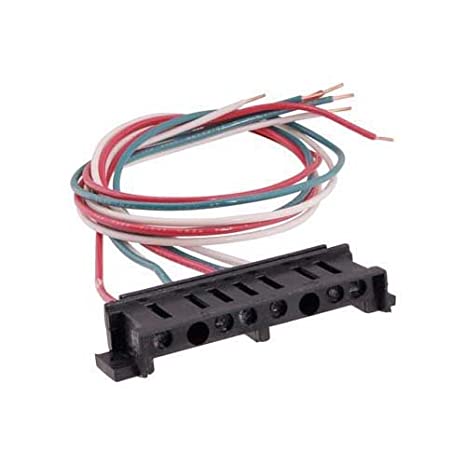

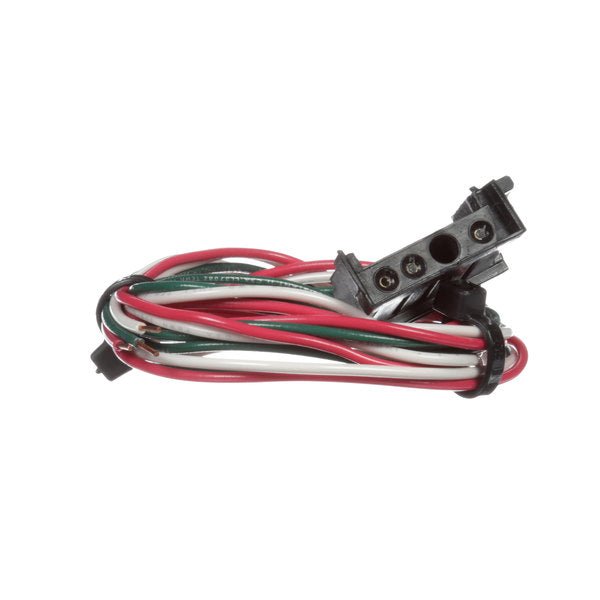

Anthony Hinge Pin Electrical Receptacle

Anthony Hinge Pin Electrical Receptacle

Left, right and middle receptacle options are listed. Confirm the connector arrangement and circuit documentation for the selected position. Choose the size or configuration that matches the original assembly.

Function and Purpose

An electrical receptacle joins the mating connector to the associated wiring. In a door-heater circuit, secure contacts and correct wire routing are essential; the receptacle does not itself replace the heater.

Listed Configuration

The available choices are Left Hand Side; Right Hand Side; Middle. Confirm the selected configuration and what it includes before ordering.

Common Failure Symptoms

• Intermittent circuit operation at the connector.
• Heat discoloration or corrosion at contacts.
• Cracked body, loose terminals or damaged leads.

Inspect the mating connector and wiring for damage. Electrical pin assignments must be confirmed from the equipment documentation.

Commercial Applications

For commercial refrigeration door electrical assemblies where the original component, selected configuration and equipment parts information agree. Restaurant maintenance teams and refrigeration service technicians should confirm the assembly details before choosing a replacement.

Before You Order

• Use the equipment model, serial number and original part markings to confirm the replacement.
• Compare connector shape, contact count and keying with the removed component.
• Compare wire routing and connector orientation with the removed component.
• Compare circuit rating and the matching electrical diagram with the removed component.
• Select the required option: Left Hand Side; Right Hand Side; Middle.
• Send clear part photos and the matching measurements to PartsDirectOnline if the fit is uncertain.

Frequently Asked Questions

What does Anthony Hinge Pin Electrical Receptacle do?

An electrical receptacle joins the mating connector to the associated wiring. In a door-heater circuit, secure contacts and correct wire routing are essential; the receptacle does not itself replace the heater.

What should I compare before ordering?

For this hinge pin electrical receptacle, compare connector shape, contact count and keying, wire routing and connector orientation, circuit rating and the matching electrical diagram. Match the original part and equipment documentation before purchase.

Which option should I select?

The current options are Left Hand Side; Right Hand Side; Middle. Select the option matching your original component; options are not interchangeable unless confirmed for your equipment.

Does this symptom always mean the part needs replacement?

Inspect the mating connector and wiring for damage. Electrical pin assignments must be confirmed from the equipment documentation.

Can you help confirm the replacement?

Send the equipment model and serial number, original part markings, and clear photos. For Anthony Hinge Pin Electrical Receptacle, include connector shape, contact count and keying and wire routing and connector orientation.
