Kason Walk-In Pull Handle 11229C00025 & Inside Release 10948000004

Kason Walk-In Pull Handle 11229C00025 & Inside Release 10948000004

Select the Kason locking pull-handle assembly or replacement inside release needed for your commercial walk-in door. OEM reference 11229C00025 identifies the 1229-series cylinder-locking handle with inside release in polished chrome. OEM reference 10948000004 identifies the separate inside-release assembly for the 1229 system.

These options serve different repair needs. Choose the handle assembly when replacing the exterior locking hardware, or the separate inside release when servicing a compatible existing system.

Choose the Correct Option

Function and Construction

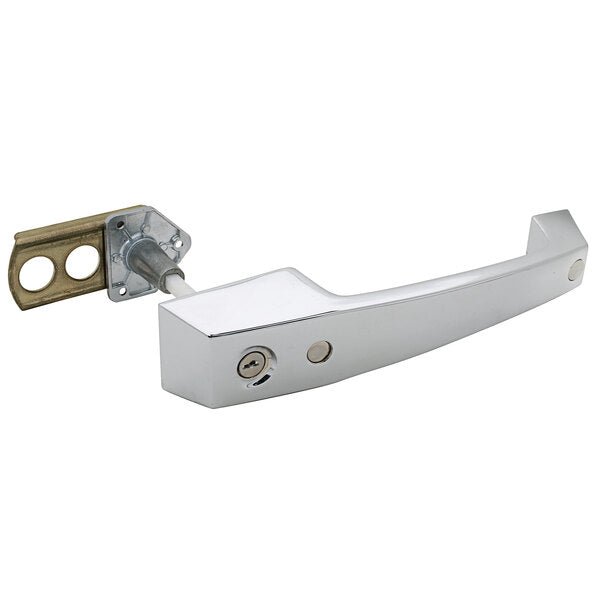

The exterior pull handle provides a grip for opening the door and incorporates cylinder locking. The matching interior release operates the locking mechanism from inside the enclosure. The 11229C00025 handle uses die-cast zinc construction with a polished-chrome finish.

The standard 1229 handle configuration is designed for a 4-inch-thick door. This measurement describes door thickness, not handle length. Match the original installation before selecting replacement hardware.

Common Reasons to Inspect or Replace

• Cracked, loose or damaged exterior handle.
• A lock that binds or does not operate consistently.
• A damaged release rod or worn interior operating mechanism.
• An inside release that sticks or fails to unlock the door.

Inspect mounting points and connecting components before ordering. Loose fasteners or damaged door surfaces may require repair alongside replacement hardware.

Before You Order

• Match the original part number and Kason hardware series.
• Select the complete handle configuration or separate inside release.
• Measure door thickness, mounting-hole spacing and release-rod length.
• Confirm the flush mounting arrangement and existing lock connection.
• Verify included keys, fasteners and any required freezer-installation components for the selected option.

Commercial Applications and Service

For compatible commercial walk-in cooler and freezer door installations. Equipment brand alone does not establish fitment; compare the installed hardware and equipment documentation.

Have a qualified technician install and test the assembly. Check exterior operation and interior release before returning the door to service. Perform testing with the enclosure unoccupied and an alternate means of access available.

Frequently Asked Questions

What is Kason 11229C00025?

It is a polished-chrome, cylinder-locking 1229-series pull handle supplied in a configuration with inside release.

What is Kason 10948000004?

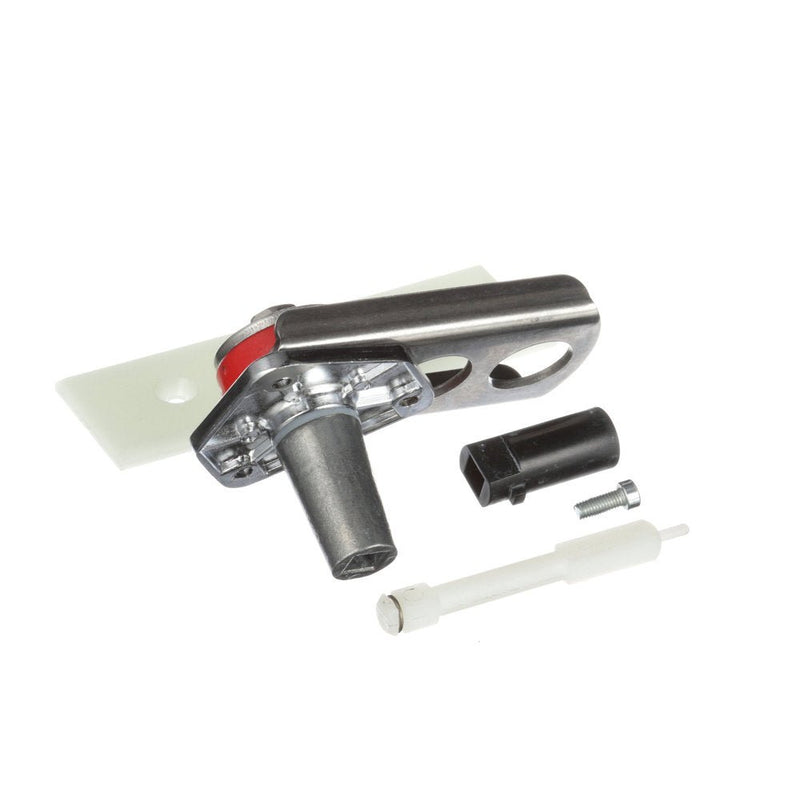

It is the separate replacement inside-release assembly with rod for the Kason 1229 system.

Does the inside-release option include an exterior handle?

No. Select 11229C00025 when you need the locking handle configuration. The 10948000004 option is the replacement inside release.

Does the 4-inch specification mean handle length?

No. It refers to the standard door thickness for the handle configuration. Compare mounting dimensions separately.

Is a freezer kit included?

Confirm the supplied package before ordering. Kason also lists dedicated freezer-kit configurations, so freezer-kit inclusion should not be assumed from the handle's appearance.

Will these parts fit every walk-in door?

No. Confirm the hardware series, door thickness, mounting arrangement and release connection. Similar-looking handles are not automatically interchangeable.

How can I get help checking fitment?

Call 631-873-0509 with the original part number, equipment model and serial number, door thickness and photos of the exterior handle and interior release.
