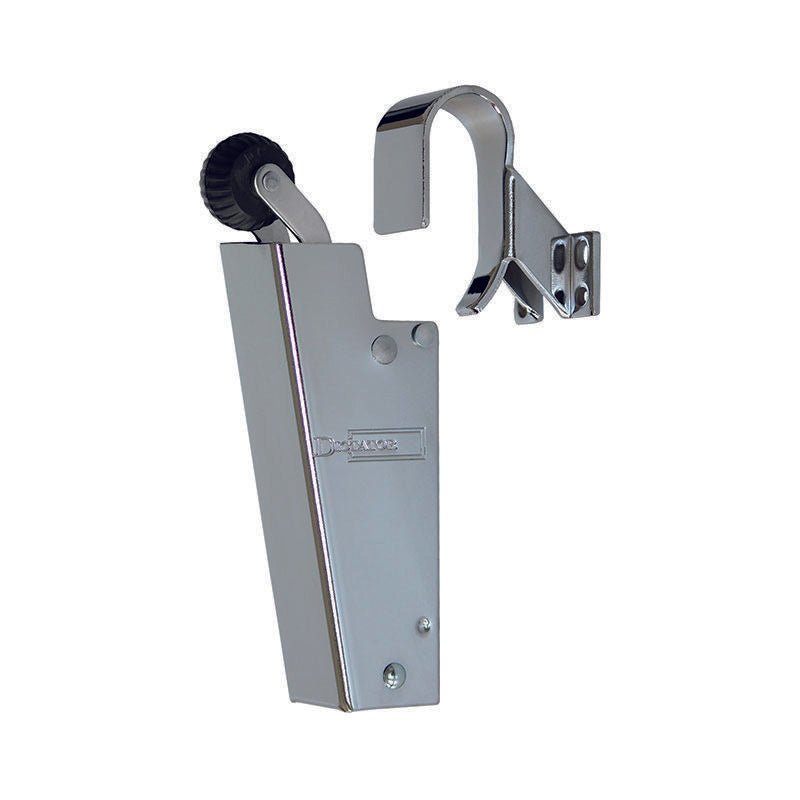

Top-Mounted Hydraulic Door Closer — Adjustable Tension | Walk-In Cooler & Freezer Door

OEM Part Details

• OEM Number: Z-1009
• OEM Status: VERIFIED
• MPN: Z-1009
• SKU: PD-150-094
• Part Type: Top-Mounted Hydraulic Door Closer

Product Overview

OEM Part Details OEM Number: Z-1009 MPN: Z-1009 SKU: PD-150-094 Part Type: Top-Mounted Hydraulic Door Closer Equipment Category: Commercial refrigeration equipment OEM Status: VERIFIED Product Overview The Z-1009 top-mounted hydraulic door closer helps a walk-in cooler or freezer door return to a controlled closed position after it is opened. Reliable door closing matters in commercial refrigeration because the door assembly, latch, hinges, and gasket must work together to maintain proper gasket compression and limit cold-air loss. A door that does not close consistently can leave the gasket partly unseated, allow moisture into the opening, and add unnecessary strain to day-to-day refrigeration operation. This hydraulic door closer is identified by OEM number Z-1009 and is intended for commercial refrigeration door hardware service where the original component matches the mounting arrangement and closing requirements. Its top-mounted design makes mounting-point comparison especially important before ordering. Review the removed closer, door position, fastener locations, and surrounding hardware so the replacement can be selected with confidence. For service companies, facility teams, and foodservice maintenance personnel, replacing a worn or damaged closer can help restore a more controlled door-closing action. The closer should always be considered as one part of the door assembly. Hinge wear, latch engagement, door alignment, and gasket condition can all affect whether a refrigeration door closes and seals as intended.

Product Function

Product Function A top-mounted hydraulic door closer manages the closing action of a commercial refrigeration door. After the door is opened, the closer provides controlled resistance and return force to guide the door back toward its closed position. This helps the door assembly reach the latch and allows the gasket to compress against the door frame when the rest of the hardware is properly aligned. The Z-1009 door closer supports dependable operation of walk-in cooler and freezer doors by helping reduce abrupt door movement, incomplete closure, and inconsistent closing action. It does not replace the role of the hinges, latch, or gasket. Those related components should be in serviceable condition for the door to close evenly and maintain a proper seal.

Why Choose a Genuine OEM Replacement?

Why Choose a Genuine OEM Replacement? The verified OEM number Z-1009 gives technicians and buyers a dependable identification point when comparing the replacement with the original door closer. Matching the OEM number, original mounting arrangement, and overall door-hardware configuration helps reduce wrong-part orders and supports a more confident commercial equipment service decision. Confirm that the removed component and equipment data plate support the Z-1009 identification before purchase.

How This Part Works

How This Part Works When a walk-in door is opened, the top-mounted hydraulic closer moves with the door through its closing range. Its hydraulic action helps regulate the return movement rather than allowing the door to move freely or close without control. As the door approaches the frame, the closer helps guide it toward the closed position so the latch and gasket can perform their respective roles. A properly operating closer is only one part of successful door sealing. The door must remain aligned on its hinges, the latch must engage correctly, and the gasket must make even contact with the frame. If any of these conditions are compromised, the door may still close poorly even when the closer is present. Inspecting the full door assembly helps determine whether the Z-1009 closer is the component requiring attention.

Technician Service Tip

Technician Service Tip Before replacing a door closer, compare the original component with the Z-1009 identification and inspect the top mounting points for looseness, damage, or misalignment. Also check hinge condition, latch engagement, and gasket compression. A closer can appear to be the cause of poor door closure when the underlying issue is worn hardware or an improperly aligned door.

Common Failure Symptoms

• The walk-in door may not return fully to the closed position after opening.
• The door may close too quickly or with an abrupt closing action.
• The door may close slowly and fail to reach the latch consistently.
• Visible leakage, damage, or wear around the closer body or mounting area may indicate the closer should be inspected.
• Loose mounting hardware may allow the closer to shift during door movement.
• The door may stop short of proper gasket compression at the frame.
• The latch may not engage consistently when the door is released.
• Moisture or frost near the door opening may indicate the door and gasket assembly should be inspected.
• Uneven door movement may indicate a closer concern or related hinge and alignment wear.
• A door that requires manual pushing to remain shut may indicate the closer, latch, hinges, or gasket need evaluation.

Commercial Applications

Commercial Applications The Z-1009 top-mounted hydraulic door closer is associated with walk-in cooler and freezer door service in commercial refrigeration equipment. Typical service environments include restaurant kitchens, foodservice facilities, institutional kitchens, refrigerated storage areas, and commercial refrigeration repair work. Because walk-in doors are opened repeatedly throughout normal operations, controlled door closure is important for maintaining dependable door operation and supporting gasket contact at the frame. Application should be confirmed from the original component, mounting configuration, OEM number Z-1009, and equipment data plate. Do not rely on appearance alone when selecting door hardware, since mounting locations, door size, hinge condition, latch arrangement, and closing requirements can vary between installations.

Before You Order

• Match OEM number Z-1009 to the original component or approved equipment documentation.
• Compare the removed part with the product image before ordering.
• Confirm that the closer is mounted at the top of the door assembly.
• Inspect and compare the mounting points and fastener locations.
• Review the equipment data plate for the correct equipment identification.
• Check whether the original door closer uses a similar hydraulic closing arrangement.
• Inspect the hinges for wear, looseness, or alignment concerns that may affect door movement.
• Confirm that the latch engages properly when the door reaches the frame.
• Inspect the gasket for compression, tears, gaps, or other sealing concerns.
• Compare the original component’s overall orientation and door-hardware arrangement before purchase.

Related Components

• Door hinges: Worn or loose hinges can cause sagging or uneven door movement, preventing the closer from guiding the door into proper alignment.
• Door latch: Inspect latch engagement because the door closer guides the door toward the frame, while the latch helps retain the closed position.
• Door gasket: Check gasket compression and condition, since a door that reaches the frame but does not seal evenly can still allow cold-air leakage.
• Door gasket retainer or track: Examine the gasket mounting area for damage or looseness that may interfere with gasket position and frame contact.
• Door mounting hardware: Inspect closer brackets, fasteners, and surrounding mounting surfaces for looseness or damage that may affect closing action.

Frequently Asked Questions

What is OEM number Z-1009?

Z-1009 is the verified OEM number for this top-mounted hydraulic door closer used in commercial refrigeration door hardware service.

What does a top-mounted hydraulic door closer do?

A top-mounted hydraulic door closer helps guide a door back toward its closed position with controlled closing action after the door has been opened.

Can a worn door closer affect gasket sealing?

Yes. If the door does not reach the frame consistently, the gasket may not compress evenly. Hinge alignment, latch engagement, and gasket condition should also be inspected.

How should I confirm this Z-1009 door closer before ordering?

Match OEM number Z-1009, compare the original component and mounting points, and confirm the equipment identification from the data plate.

Why does a walk-in door still close poorly after the closer is inspected?

Poor closure can also be related to worn hinges, loose mounting hardware, latch concerns, door misalignment, or a gasket that is damaged or not compressing correctly.

Is this door closer for commercial refrigeration equipment?

Yes. This top-mounted hydraulic door closer is identified for walk-in cooler and freezer door applications within commercial refrigeration equipment.
