Kason 180800A100 LED Walk-In Light Fixture – 120V

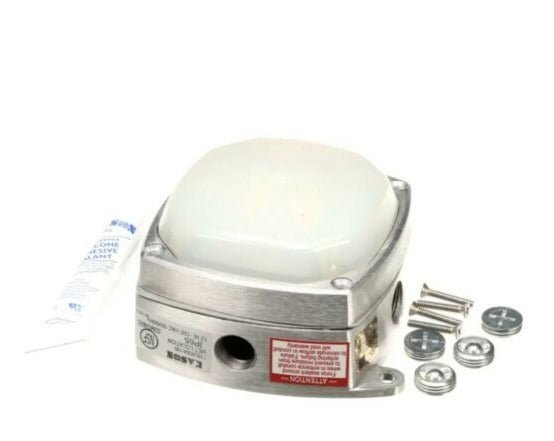

Kason 180800A100 LED Walk-In Light Fixture

Illuminate your commercial walk-in cooler or freezer with the Kason 180800A100 1808 Series LED light fixture. The A100 configuration operates on 120 VAC and delivers 1,194 lumens of 4000K light for visibility inside refrigerated storage areas.

The compact assembly combines an aluminum housing with a low-profile Lexan lens designed to reduce glare. Its surface-mount construction is intended for compatible commercial cooler and freezer installations, including damp and wet environments when installed according to the manufacturer’s requirements.

This listing is offered as a Commercial Replacement Part. The catalog replacement reference for 180800A100 is 1180800A100.

Technical Specifications

Commercial Applications and Fitment

The 1808-A100 is designed for commercial refrigerated storage lighting where the installation requires a compatible 120V surface-mounted fixture. Typical applications include walk-in coolers and freezers used by restaurants, foodservice facilities, and commercial kitchens.

Select the fixture by its complete part reference, electrical rating, mounting arrangement, and available installation space. The 1808 series includes different configurations, so the series name alone does not establish interchangeability.

When to Inspect or Replace the Fixture

• No illumination: The light remains off after the supply circuit, switch, and connections have been checked.
• Intermittent operation: Flickering or unexpected shutdowns continue after an electrical inspection.
• Physical damage: A cracked lens, damaged housing, or broken mounting point affects the assembly.
• Moisture inside the fixture: Condensation, corrosion, or water accumulation indicates that the enclosure and wire-entry sealing need attention.

Lighting problems can originate in the supply circuit or installation. Identify the cause before replacing the fixture so the same problem does not affect the replacement.

Before You Order

• Read the existing fixture label: Record the complete part number and electrical ratings.
• Verify the supply: The A100 configuration listed here uses 120 VAC.
• Compare the installation: Check mounting points, junction-box arrangement, conduit entry, and fixture clearance.
• Identify the repair scope: Determine whether you need the complete fixture assembly or a separately identified service component.
• Have equipment details available: The walk-in manufacturer, model, serial number, and photos of the installed light can help with selection.

Installation Considerations

Kason’s installation instructions call for installation by a qualified electrician and supply conductors rated for at least 90°C. Wire entries and conduit openings must be properly sealed to help prevent condensation from collecting inside the fixture. Follow the instructions supplied with the replacement and inspect the sealing surfaces during installation.

Frequently Asked Questions

What is Kason part number 180800A100?

It identifies an 1808 Series LED light fixture for compatible commercial refrigeration installations. Parts catalogs list 1180800A100 as its replacement reference.

Is the A100 fixture rated for 120V or 120–277V?

The A100 configuration is rated for 120 VAC, 50/60 Hz. Other 1808 configurations have different electrical ratings, so match the complete part number and fixture label when selecting a replacement.

Can this fixture be used in a walk-in freezer?

Kason identifies the 1808 fixture for cooler and freezer environments and publishes an operating range of -40°F to 104°F. The electrical supply, mounting, and sealing must also meet the fixture’s installation requirements.

How much light does the A100 configuration produce?

Kason publishes an output of 1,194 lumens with a 4000K color temperature. Actual illumination on shelves and work areas depends on mounting height, room layout, and obstructions.

Is this a complete fixture or a replacement bulb?

This listing is for the complete LED fixture assembly. If you need a replacement light engine, lens, or another individual component, identify that component separately before ordering.

How do I match this fixture to my existing walk-in?

Start with the number and voltage on the installed fixture. Then compare the mounting points, conduit arrangement, and available clearance. Keep the walk-in model and serial number available if additional fitment research is needed.

What should be checked if there is condensation inside the old fixture?

Have the installer inspect the gasket, enclosure, and sealing around wire and conduit openings. Correcting the moisture entry point is part of a successful repair, even when the complete fixture is being replaced.

Related Parts and Selection Help

Browse Kason commercial refrigeration parts and commercial refrigeration lighting fixtures for related replacement options.

Need help matching your fixture? Call PartsDirectOnline at 631-873-0509 with the original part number, fixture label information, and equipment details.
