Anthony 60-12377-0001 Double Electrical Hinge Pin Receptacle – 6 Wire

Anthony 60-12377-0001 Double Electrical Hinge Pin Receptacle

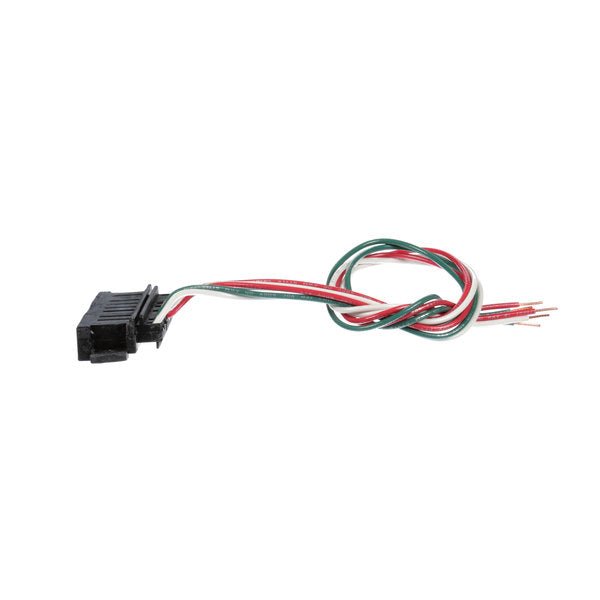

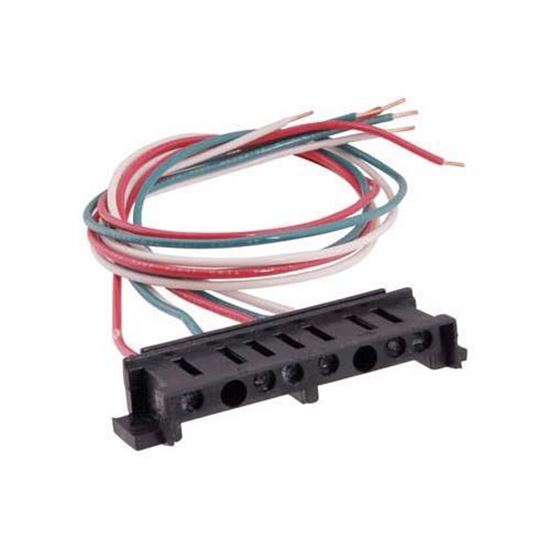

This 6-wire double electrical hinge pin receptacle is a commercial replacement part for Anthony refrigeration door and frame assemblies specifying manufacturer part number 60-12377-0001. Also identified as a dual station socket connection, this double/reversible receptacle receives the matching electrical hinge pin and connects the powered door assembly to the frame wiring.

The receptacle measures 2-5/8 inches x 1 inch. Correct selection depends on the original part number, socket arrangement, mounting configuration, and equipment wiring diagram. It is intended for matching commercial refrigeration applications, including the door-heater electrical connection where specified by the equipment manufacturer.

Product Specifications

Documented Anthony Applications

Anthony parts documentation identifies 60-12377-0001 as the dual station socket connection in the following assemblies:

Fitment requirement: Confirm the exact door/frame configuration and original part number before ordering. A model or series name alone does not establish compatibility across every production version. Check the Anthony identification label, serial or work-order information, and applicable parts diagram.

When to Inspect the Receptacle

A technician should inspect the receptacle and its mating hinge pin when troubleshooting:

• Intermittent operation of the connected door-heater circuit.
• Heat discoloration, corrosion, or visible damage at the electrical contacts.
• A cracked socket housing or loose electrical connection.
• Damaged leads or insulation near the receptacle.

Condensation or frost on a refrigerated door can have several causes. Confirm whether the receptacle, mating hinge pin, wiring, heater, or control circuit is responsible before selecting a replacement.

Before You Order

1. Match the manufacturer number: Confirm that the original component or equipment parts list specifies 60-12377-0001.
2. Confirm the socket configuration: Compare the double/reversible receptacle with the installed assembly.
3. Check the measurements: Compare the listed 2-5/8-inch x 1-inch dimensions, mounting arrangement, and available clearance.
4. Verify the wiring: Match the six-wire configuration and electrical connections to the equipment wiring diagram. Wire color alone is not a wiring instruction.
5. Inspect related components: Check the mating hinge pin and surrounding wiring for damage that could affect the replacement connection.

For help checking the match, call 631-873-0509 or use our part identification and fitment support. Have the equipment model, serial or work-order information, original part number, and clear photos available.

Installation Notes

Installation should be performed by a qualified commercial refrigeration service technician. Disconnect power and follow the equipment manufacturer's lockout procedures before servicing. Use the applicable wiring diagram to verify connections, grounding, and wire routing. Inspect the mating contacts and confirm correct operation after installation.

Frequently Asked Questions

What is Anthony 60-12377-0001 used for?

It is a double/reversible electrical hinge pin receptacle, also called a dual station socket connection. It provides the socket connection between matching Anthony refrigeration frame wiring and the powered door assembly.

Which Anthony models have documented applications for this receptacle?

Manufacturer documentation lists this part in Infinity 060 aluminum-frame assemblies and Vista D/Vista E frame assemblies. Order it only when the parts information for your specific configuration calls for 60-12377-0001.

What are the dimensions of this receptacle?

The listed dimensions are 2-5/8 inches x 1 inch. Also compare the socket shape, mounting arrangement, and clearance with the original part before ordering.

How many wires does this version have?

This listing is for the six-wire double receptacle configuration. Confirm the original socket arrangement and wiring diagram when selecting between single and double receptacle versions.

Is this the door heater element?

This component is the electrical receptacle used at the hinge-pin connection. The heating element and mating electrical hinge pin are separate components with their own part numbers and fitment requirements.

Will replacing the receptacle correct condensation on the door?

Replacement may restore the door-heater connection if a failed receptacle is the diagnosed cause. Condensation can also involve heater faults, controls, wiring, door sealing, or operating conditions, so the circuit and door assembly should be checked first.

How can I confirm fitment before purchasing?

Match manufacturer part number 60-12377-0001, the double-socket configuration, measurements, and wiring arrangement. For assistance, call PartsDirectOnline at 631-873-0509 with the model, serial or work-order details, and photos of the original component.
