Hobart Warmer Cabinet Magnetic Door Gaskets – Multiple Sizes

Hobart Commercial Cabinet Magnetic Door Gaskets – Multiple Sizes

This listing includes multiple Hobart commercial cabinet magnetic door gasket options for compatible Hobart equipment. Available selections vary by manufacturer part number, overall dimensions, number of gasket sides, material, and equipment application, so the exact variant should be selected and verified before ordering.

These replacement door gaskets help create a consistent seal between the equipment door and cabinet. The magnetic sealing section helps draw the gasket toward the cabinet surface when the door is closed, while the flexible gasket body compresses around the door perimeter to help reduce unwanted air and temperature loss.

This is a multi-variant gasket listing. The available sizes and manufacturer references are not automatically interchangeable. Always match the selected variant to the original gasket, equipment model, serial number, measurements, mounting profile, and door configuration.

Available Hobart Gasket Options

Current selections on this listing include:

• 283091-8 – approximately 24-1/8" x 29-5/8"
• 283091-9 – approximately 24-1/2" x 61"
• 283091-1 – approximately 30-1/2" x 69-1/4", 3-sided
• 283091-2 – approximately 30-1/2" x 76", 3-sided

Select the required size from the product options above. Dimensions, number of sides, material, and equipment application can differ between variants, so use the individual manufacturer part number and listed size as the primary ordering reference.

What a Magnetic Cabinet Door Gasket Does

A cabinet door gasket creates a flexible barrier between the equipment door and cabinet opening. When the door closes, the magnetic portion of the gasket helps pull the sealing surface against the cabinet while the flexible gasket body compresses to close gaps around the perimeter.

Maintaining an even door seal is important for commercial equipment because gaps around the door can allow unwanted temperature transfer. Depending on the equipment application, a damaged gasket can contribute to excessive heat loss, warm-air infiltration, moisture, extended equipment run time, or difficulty maintaining the intended cabinet temperature.

Commercial Hobart Equipment Applications

The gasket variants on this page are associated with compatible Hobart commercial cabinet equipment. Depending on the selected part number, applications may include commercial holding cabinets, warmer cabinets, refrigerators, freezers, and other Hobart foodservice equipment.

Do not assume that every gasket on this page fits every Hobart cabinet. Hobart equipment can use different gasket sizes and configurations within similar equipment families.

3-Sided and 4-Sided Gasket Configurations

Some gasket options on this page use a conventional four-sided configuration, while selected larger variants are listed as 3-sided gaskets.

A 3-sided gasket should not be substituted for a 4-sided gasket simply because the width and height appear similar. Confirm the original door configuration and number of gasket sides before ordering.

Common Signs a Door Gasket May Need Replacement

• Gasket is torn, cracked, split, or damaged
• Magnetic seal no longer contacts the cabinet evenly
• Gasket has become hard or permanently compressed
• Visible gaps appear around the closed door
• Gasket pulls away from the door or mounting retainer
• Door does not close or seal evenly
• Cabinet has difficulty maintaining its intended temperature
• Excessive heat or air is escaping around the door perimeter
• Original gasket is damaged during door or hinge service

A sealing problem does not always mean the gasket itself has failed. Worn hinges, door alignment, latch adjustment, damaged retainers, or cabinet damage can also prevent proper door contact.

How to Identify the Correct Hobart Gasket

Do not choose a replacement gasket based only on appearance. Commercial cabinet gaskets can look nearly identical while having different dimensions, mounting profiles, materials, or door applications.

Before ordering, compare:

• Hobart manufacturer part number when available
• Equipment model number
• Equipment serial number
• Overall gasket width and height
• 3-sided or 4-sided configuration

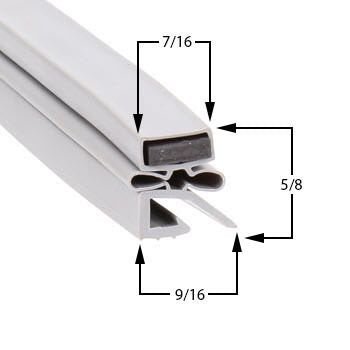

• Gasket cross-section and mounting profile
• Door size and orientation
• Original gasket material and construction

Measuring the Existing Door Gasket

Measure the original gasket carefully and compare the measurements with the selected variant. Gasket dimensions can sometimes be reported using slightly different measuring methods, so the manufacturer part number should be used whenever it is available.

For a 3-sided gasket, confirm both the overall dimensions and the open-side orientation before ordering.

Technician Installation Tips

Before installing a replacement gasket, inspect and clean the door mounting area or gasket retainer. Remove grease, food residue, damaged gasket material, and other debris that could prevent the replacement from seating correctly.

Install the gasket evenly without unnecessarily stretching the material. After installation, close the door and inspect the entire sealing perimeter for consistent cabinet contact.

If the new gasket does not seal evenly, inspect the hinges, latch, door alignment, retainer, and cabinet surface before assuming the replacement gasket is incorrect.

Before You Order

This page contains multiple Hobart gasket variants. Always select the exact size and part-number option required for your equipment.

Before purchasing, confirm:

• Selected manufacturer part number
• Listed gasket dimensions
• 3-sided or 4-sided construction
• Equipment model number
• Equipment serial number
• Mounting profile
• Door configuration
• Original gasket dimensions and shape

If fitment is uncertain, provide the equipment model number, serial number, original gasket part number when available, overall dimensions, and clear photos of the original gasket profile before ordering.

Frequently Asked Questions

Are all of the Hobart gaskets on this page the same size?
No. This is a multi-variant listing containing several gasket sizes. Select the correct variant and compare its dimensions and manufacturer part number with the original gasket.

Are all of these gasket part numbers interchangeable?
No. Different part numbers can represent different dimensions, door configurations, materials, or equipment applications. Order the part number specified for the equipment whenever possible.

What is the difference between a 3-sided and 4-sided gasket?
A four-sided gasket seals around the complete rectangular door perimeter. A three-sided gasket is manufactured for an application that uses sealing material on three sides. Match the original door configuration before ordering.

Are these magnetic door gaskets?
Yes. These gasket options use a magnetic sealing design to help maintain contact between the door gasket and cabinet when the door is closed.

Can I select a Hobart gasket using dimensions alone?
Dimensions are an important identification point, but they should not be the only one. Compare the manufacturer part number, equipment model, serial number, gasket profile, number of sides, and mounting configuration.

Why is my cabinet door still not sealing after replacing the gasket?
Possible causes include incorrect gasket fitment, worn hinges, door misalignment, latch problems, a damaged gasket retainer, or an uneven cabinet surface.

How do I know which variant I need?
Match the original Hobart manufacturer part number whenever possible. Then compare the listed dimensions, number of sides, mounting profile, equipment model, and serial number before ordering.

Should I use my PartsDirectOnline SKU to identify the gasket?
The PartsDirectOnline SKU is an internal ordering reference. When available, use the Hobart manufacturer part number together with the equipment model, serial number, dimensions, and gasket configuration to confirm the replacement.

Commercial Door Gaskets from PartsDirectOnline

PartsDirectOnline supplies commercial equipment door gaskets and replacement parts for service technicians, restaurants, commercial kitchens, maintenance departments, institutional facilities, and foodservice operations. Accurate gasket measurements and manufacturer part-number identification help reduce ordering errors and improve replacement-part selection.
