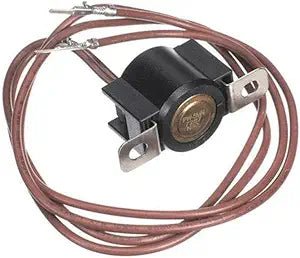

Everest RS04-00 OEM Defrost Termination Backup Switch

Everest RS04-00 OEM Defrost Termination Backup Switch

The Everest RS04-00 Defrost Termination Backup Switch is an OEM temperature-responsive safety and defrost-control component designed for compatible Everest commercial refrigeration equipment. Everest service documentation identifies RS04-00 as the Defrost Overheat Termination Backup Switch located in the evaporator assembly.

The switch works as part of the equipment's defrost system to respond to temperature conditions around the evaporator and provide protective termination control according to the refrigeration system design. Proper operation is important because an abnormal defrost condition can contribute to excessive evaporator temperature, incomplete frost management, repeated icing, or control-sequence problems.

When qualified refrigeration diagnosis confirms that the defrost termination switch requires replacement, using the correct Everest OEM RS04-00 helps restore the original evaporator and defrost-control configuration intended for compatible Everest equipment.

OEM Part Details

• Manufacturer: Everest Refrigeration
• OEM Part Number: RS04-00
• MPN: RS04-00
• SKU: RS04-00
• Part Type: Defrost Termination Backup Switch
• Alternate Description: Defrost Termination Thermostat
• Application: Commercial Refrigeration Equipment
• System: Evaporator / Defrost Control System
• Function: Temperature-Responsive Defrost Overheat Termination

Compatible Everest Models

The Everest RS04-00 OEM Defrost Termination Switch is listed for compatible Everest commercial refrigeration equipment including popular model references:

• ESRF2
• ETRF2
• ESWR2

Compatibility Note: Everest equipment can vary by serial number, production date, voltage, evaporator configuration, and factory revision. Always verify OEM part number RS04-00, the complete equipment model and serial number, original termination switch, wiring, terminals, and mounting arrangement before ordering.

What the Everest RS04-00 Defrost Termination Switch Does

The Everest RS04-00 is installed in the evaporator area and works as part of the refrigeration equipment's defrost protection system. The switch responds to temperature conditions and provides the applicable control response when its designed temperature condition is reached.

Proper operation helps support:

• Defrost-system temperature protection
• Controlled termination of abnormal defrost heating conditions
• Proper interaction with the evaporator defrost system
• Protection of refrigeration components from excessive defrost heat
• Reliable defrost-system operation
• Consistent commercial refrigeration performance

Defrost Termination Switch vs. Defrost Heater

The RS04-00 and the defrost heater perform different functions within the refrigeration system.

• Defrost Heater: Produces heat used to remove frost or ice from the evaporator.
• RS04-00 Termination Backup Switch: Responds to evaporator-area temperature conditions and provides protective termination control within the defrost system.

A failed heater can cause incomplete defrost even when the termination switch is functioning correctly. Likewise, a termination-control problem can create abnormal defrost behavior even when the heater itself is operational.

Common Signs of a Defrost-System Problem

Qualified commercial refrigeration technicians may inspect the Everest RS04-00 when troubleshooting conditions such as:

• Evaporator repeatedly develops heavy frost or ice
• Defrost operation appears abnormal
• Defrost heat continues longer than expected
• Cabinet temperature rises after repeated evaporator icing
• Airflow through the evaporator becomes restricted by frost
• Termination switch does not change state when expected
• Electrical continuity is inconsistent
• Terminals are loose, damaged, or overheated
• Wiring around the evaporator area is damaged
• Switch mounting is loose or physically damaged
• Machine experiences repeated defrost-related service problems

These symptoms do not automatically confirm RS04-00 failure. Defrost heaters, evaporator sensors, refrigeration controls, fan motors, wiring, door sealing, airflow, refrigerant-system conditions, and drainage problems can create similar symptoms. The complete defrost and evaporator system should be diagnosed before replacing the switch.

Diagnosing an Iced Evaporator

A heavily iced evaporator does not automatically indicate a failed defrost termination switch. Frost accumulation may result from several different refrigeration or control conditions.

Technicians may need to inspect:

• Defrost heater operation
• RS04-00 termination switch
• Evaporator temperature sensor
• Refrigeration control operation
• Evaporator fan operation
• Door gasket condition
• Door closing and alignment
• Air infiltration
• Evaporator airflow
• Drainage and condensate removal

Identifying the actual cause of evaporator icing helps prevent unnecessary replacement of a functional termination switch.

Defrost Termination Switch vs. Evaporator Sensor

Everest refrigeration equipment can use multiple temperature-related components in the evaporator area. These components may serve different purposes and should not be treated as interchangeable.

The RS04-00 is specifically identified as a defrost overheat termination backup switch. Other sensors may provide evaporator temperature information to the primary electronic control.

Before ordering, compare the removed component and its wiring with the OEM part number to ensure the correct temperature-control component is being replaced.

Why the Backup Function Matters

The Everest designation of RS04-00 as an overheat termination backup switch is important. It means the component should be considered part of a broader defrost-control system rather than as the only component determining normal defrost operation.

If the switch is being activated unexpectedly or repeatedly, technicians should evaluate why the defrost system is reaching that condition rather than replacing the switch without investigating the underlying system.

Inspect the Defrost Heater

When servicing an RS04-00 termination switch, inspect the applicable defrost heater and its electrical connections.

Look for:

• Open heater circuit
• Damaged heater wiring
• Burned terminals
• Loose connectors
• Physical heater damage
• Signs of overheating
• Incorrect heater operation

A heater-related problem should be corrected independently from the termination switch.

Inspect the Evaporator Fan & Airflow

Defrost and refrigeration performance depend on proper airflow through the evaporator section. Reduced airflow can contribute to temperature problems and frost accumulation that may be mistaken for a defrost-control failure.

Inspect:

• Evaporator fan motor
• Fan blade
• Fan guard
• Ice interference
• Blocked airflow passages
• Evaporator coil cleanliness
• Airflow direction

Inspect Wiring & Electrical Connections

The RS04-00 must remain correctly connected to the equipment control circuit. Wiring or terminal problems can create intermittent or misleading symptoms.

Technicians should inspect for:

• Loose electrical terminals
• Damaged connectors
• Broken wiring
• Pinched conductors
• Corrosion
• Moisture contamination
• Heat-damaged insulation
• Evidence of electrical arcing

Any damaged wiring or connection should be corrected before installing the replacement switch.

Technician Checks Before Ordering

Before replacing the Everest RS04-00 defrost termination switch, verify:

• OEM part number RS04-00
• Complete Everest equipment model
• Equipment serial number
• Original termination-switch identification
• Original wiring configuration
• Terminal arrangement
• Switch mounting position
• Evaporator configuration
• Defrost heater condition
• Evaporator sensor condition
• Evaporator fan operation
• Condition of associated wiring and connectors

OEM part-number verification should be the primary identification method. Temperature-responsive switches can look similar while having different temperature characteristics, electrical ratings, mounting arrangements, terminals, and equipment applications.

Commercial Refrigeration Applications

Compatible Everest commercial refrigerators and freezers are used in demanding foodservice environments where dependable refrigeration and defrost performance are important.

• Restaurants
• Commercial kitchens
• Hotels
• Schools
• Hospitals
• Universities
• Convenience stores
• Institutional kitchens
• Corporate cafeterias
• Catering operations
• Foodservice facilities

Installation & Service Notes

Disconnect electrical power before servicing commercial refrigeration equipment and follow applicable Everest service procedures.

Before removing the original RS04-00, document its mounting position, terminal arrangement, wiring connections, and relationship to the evaporator fan and defrost-heater assembly.

Compare the replacement component with the original switch before installation. Inspect nearby wiring, connectors, defrost components, and evaporator hardware for heat damage or other conditions that could have contributed to the original failure.

After installation, restore power and verify the equipment through appropriate refrigeration and defrost operation.

Confirm that:

• The switch remains securely mounted
• Electrical connections remain secure
• Defrost operation completes normally
• No abnormal overheating occurs
• Evaporator airflow is restored after defrost
• The cabinet returns to normal refrigeration operation

Commercial refrigeration defrost controls should be diagnosed and installed by qualified refrigeration service personnel.

Why Correct Everest OEM Identification Matters

Commercial refrigeration defrost switches and thermostats can appear nearly identical while having different temperature ratings, switch characteristics, terminal arrangements, mounting configurations, and equipment applications.

Using Everest OEM part number RS04-00 as the primary identification reference helps technicians and purchasing departments select the intended replacement rather than relying solely on physical appearance.

Always verify the complete equipment model, serial number, original switch, terminal configuration, mounting location, and applicable Everest service information before ordering.

Frequently Asked Questions

What is Everest RS04-00?

Everest RS04-00 is an OEM defrost overheat termination backup switch used in compatible Everest commercial refrigeration equipment.

Is Everest RS04-00 a defrost termination thermostat?

Yes. It is commonly described as a defrost termination switch or thermostat. Everest service documentation specifically identifies RS04-00 as a Defrost Overheat Termination Backup Switch.

Which Everest models use RS04-00?

Verified popular model references include ESRF2, ETRF2, and ESWR2. Always verify the complete equipment model and serial number before ordering.

Does Everest RS04-00 fit ETRF2?

RS04-00 is listed for compatible Everest ETRF2 equipment. Verify serial number and original switch before ordering.

Does Everest RS04-00 fit ESWR2?

RS04-00 is listed for compatible Everest ESWR2 equipment. Compare the original switch and equipment identification before replacement.

Can a bad defrost termination switch cause evaporator icing?

A defrost-control problem can contribute to abnormal frost conditions, but heater failure, sensor problems, airflow restrictions, door sealing issues, and other refrigeration conditions can produce the same symptom.

Can a bad RS04-00 cause defrost to run too long?

A termination-control problem can affect protection during defrost, but the complete defrost system should be evaluated because multiple controls and components influence the sequence.

Should the defrost heater be checked when replacing RS04-00?

Yes. Heater operation and related wiring should be inspected because the heater and termination switch perform different but related functions.

Should the evaporator sensor be inspected?

Yes. Everest equipment can use separate evaporator sensing and backup termination components, so related sensors should be evaluated when diagnosing a defrost problem.

How do I confirm Everest RS04-00 is the correct replacement?

Verify OEM part number RS04-00, the complete Everest model and serial number, original switch, mounting arrangement, wiring, terminals, and applicable equipment service documentation before ordering.

Is professional installation recommended?

Yes. Commercial refrigeration defrost and electrical controls should be diagnosed and installed by qualified refrigeration service personnel.
