Everest Commercial Refrigeration Door & Drawer Gaskets

Everest Commercial Refrigeration Door & Drawer Gaskets – 20 Replacement Options

This listing includes 20 Everest commercial refrigeration gasket options for compatible Everest refrigerators, freezers, undercounter units, prep tables, chef bases, reach-ins, merchandisers, and related refrigerated equipment.

Available selections vary by manufacturer part number, overall dimensions, gasket profile, door or drawer application, equipment family, and mounting configuration. The individual variants on this page are not automatically interchangeable.

Select the exact gasket required for the equipment and compare the manufacturer part number, dimensions, profile, mounting style, model number, serial number, and original gasket before ordering.

20 Available Everest Gasket Options

This parent listing combines multiple Everest gasket configurations into one convenient product page. Depending on the selected variant, the replacement may be designed for a:

• Solid refrigerator door
• Freezer door
• Refrigerated drawer
• Chef-base drawer
• Glass door
• Undercounter refrigeration door
• Reach-in refrigerator or freezer
• Prep-table or refrigerated-base application

Each selection should be identified by the Everest manufacturer part number and dimensions shown for that specific variant. Do not assume two similar-looking gaskets are interchangeable.

What an Everest Refrigeration Gasket Does

A commercial refrigeration gasket forms a flexible sealing surface between the equipment door or drawer and the cabinet opening. When the door or drawer closes, the gasket compresses against the mating surface to help limit unwanted air and moisture entering the refrigerated compartment.

Maintaining consistent gasket contact helps support stable cabinet temperatures and normal refrigeration operation. A damaged, distorted, or incorrectly fitted gasket can allow warm, humid air to enter the equipment.

Door, Drawer & Glass-Door Gasket Applications

Everest manufactures different gasket configurations for different equipment and opening styles. A gasket intended for a refrigerated drawer should not automatically be substituted for a door gasket, and a solid-door gasket should not be assumed to fit a glass-door application.

Current Everest parts catalogs include distinct manufacturer numbers for door gaskets, drawer gaskets, chef-base drawer gaskets, and glass-door gaskets. The exact variant should therefore be selected according to the original equipment configuration.

Push-In Gasket Installation

Everest service documentation describes door-gasket installation using a slotted gasket groove. The retaining portion of the replacement gasket seats into this groove around the door perimeter.

Everest instructs technicians to begin installation at the upper corners and work evenly toward the center, then continue down the sides and across the bottom. The gasket should not be unnecessarily stretched or bent during installation.

Common Signs a Refrigeration Gasket May Need Replacement

• Gasket is torn, cracked, split, or punctured
• Seal has become hard or permanently compressed
• Visible gaps remain when the door or drawer is closed
• Gasket pulls out of its retaining groove
• Door or drawer does not seal evenly at the corners
• Moisture develops around the cabinet opening
• Frost or condensation appears near the gasket area
• Cabinet temperature becomes inconsistent
• Refrigeration system runs longer than normal
• Original gasket has been damaged during equipment service

These symptoms do not automatically mean the gasket itself is the only problem. Door alignment, hinges, drawer slides, rollers, latches, cabinet mounting surfaces, and related hardware can also affect sealing.

Why Gasket Condition Matters

Commercial refrigerator and freezer doors and drawers are opened repeatedly throughout the workday. Each closing cycle compresses the gasket, making it a normal wear component.

Over time, gasket material can flatten, harden, tear, distort, or lose consistent cabinet contact. Replacing a damaged gasket with the correct Everest configuration helps restore the intended sealing surface when the rest of the equipment is properly aligned.

How to Identify the Correct Everest Gasket

Do not choose a replacement gasket based only on appearance. Everest uses multiple gasket sizes and profiles across its commercial refrigeration product families.

Before ordering, compare:

• Everest manufacturer part number
• Equipment model number
• Equipment serial number
• Overall gasket width and height
• Door, drawer, or glass-door application

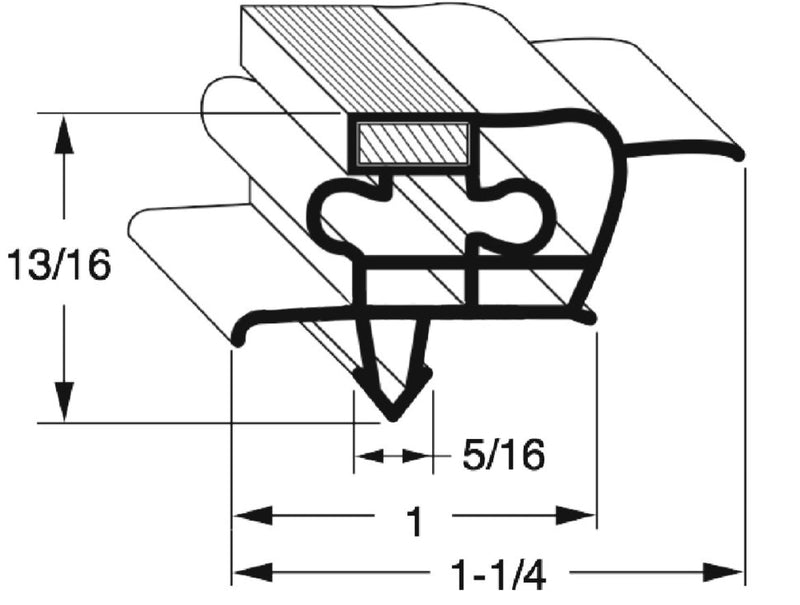

• Gasket cross-section / profile
• Mounting / retaining profile
• Door or drawer dimensions
• Original gasket corner construction
• Existing cabinet sealing surface

Measuring the Existing Gasket

Measure the original gasket carefully before selecting one of the 20 options. Use the overall width and height together with the manufacturer part number and gasket profile.

Gasket measurements can sometimes vary slightly between catalogs depending on where the measurement is taken. For that reason, dimensions should not be used as the only identification method.

Technician Installation Tips

Before installing the replacement gasket, clean the gasket-retaining groove and remove dirt, grease, food residue, or deteriorated gasket material that could prevent the new gasket from seating correctly.

Start with the corners and work the gasket evenly into the retaining groove. Avoid stretching, twisting, or sharply bending the gasket during installation.

After installation, close the door or drawer and inspect the complete perimeter. The gasket should maintain consistent contact without large gaps, twisting, or sections pulling out of the mounting groove.

If sealing remains uneven, inspect the hinges, latch, drawer slides, rollers, alignment, cabinet surface, and gasket retainer before assuming the replacement gasket is incorrect.

Before You Order

This listing contains 20 different Everest gasket variants. Select the exact option required for the equipment.

Confirm the following before purchasing:

• Exact Everest manufacturer part number
• Listed gasket dimensions
• Door, drawer, or glass-door application
• Gasket profile
• Mounting / retaining style
• Equipment model number
• Equipment serial number
• Original gasket dimensions and shape

Do not substitute one variant for another simply because the dimensions appear similar. The profile and equipment application must also match.

Frequently Asked Questions

Are all 20 Everest gaskets on this page the same size?
No. This listing contains multiple gasket sizes and configurations. Select the exact option required for the equipment and compare its dimensions with the original gasket.

Are all 20 Everest gasket options interchangeable?
No. Individual variants can differ by manufacturer part number, dimensions, profile, mounting configuration, and equipment application.

Does this listing include both door and drawer gaskets?
Yes. Everest uses different gasket configurations for commercial doors and refrigerated drawers, and the exact application depends on the selected variant.

Can I select an Everest gasket using dimensions alone?
No. Dimensions should be checked together with the manufacturer part number, equipment model, serial number, gasket profile, and door or drawer configuration.

How do Everest push-in gaskets install?
Everest service documentation describes seating the retaining portion of the gasket into the door's slotted groove. Installation begins at the corners and proceeds evenly around the opening.

Should I stretch the gasket during installation?
No. Everest specifically warns against stretching or bending the gasket during installation.

Why does a new gasket still have a gap?
Possible causes include incorrect gasket selection, door or drawer misalignment, worn hinges, damaged slides or rollers, latch problems, improper installation, or damage to the cabinet sealing surface.

How do I determine which Everest gasket variant I need?
Match the original Everest manufacturer part number whenever possible and verify the equipment model, serial number, gasket dimensions, profile, mounting style, and door or drawer application before ordering.

Everest Commercial Refrigeration Gaskets

Everest manufactures commercial refrigeration equipment in numerous door and drawer configurations, including reach-ins, undercounters, prep tables, chef bases, merchandisers, and other refrigerated equipment. Accurate manufacturer part-number, dimensional, profile, and equipment identification helps reduce incorrect orders and supports proper cabinet sealing.
