Zero Zone 69-0203-1 OEM Thermostatic Expansion Valve TXV

Zero Zone 69-0203-1 OEM Thermostatic Expansion Valve TXV

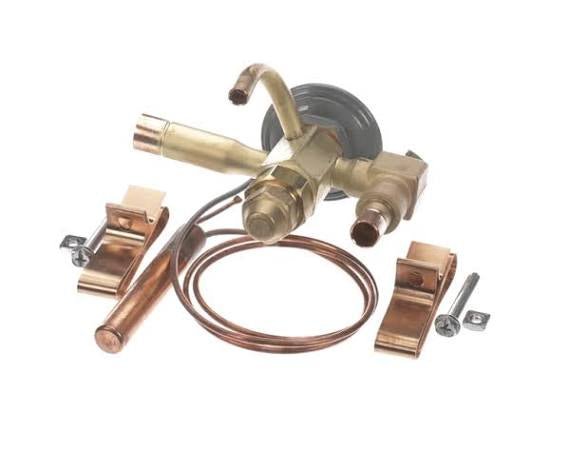

The Zero Zone 69-0203-1 Thermostatic Expansion Valve is an OEM refrigerant-metering component designed for compatible Zero Zone commercial refrigeration equipment. Commonly referred to as a TXV, the valve regulates refrigerant flow into the evaporator according to refrigeration-system operating conditions.

Proper TXV operation is critical to evaporator performance. A valve that is restricted, stuck, incorrectly feeding, improperly adjusted, or affected by a sensing-bulb or equalizer problem can contribute to poor cooling, abnormal superheat, evaporator starvation, flooding, inconsistent case temperature, or compressor operating concerns.

When qualified refrigeration diagnosis confirms expansion-valve replacement is required, using the correct Zero Zone OEM 69-0203-1 helps restore the refrigerant-metering configuration intended for compatible equipment.

OEM Part Details

• Manufacturer: Zero Zone
• OEM Part Number: 69-0203-1
• MPN: 69-0203-1
• Part Type: Thermostatic Expansion Valve / TXV
• Application: Commercial Refrigeration Equipment
• Function: Refrigerant Metering to the Evaporator

What the Zero Zone 69-0203-1 TXV Does

The Zero Zone 69-0203-1 TXV meters liquid refrigerant into the evaporator and responds to refrigeration-system conditions through its sensing arrangement. Its purpose is to maintain appropriate refrigerant feed through the evaporator while supporting the superheat conditions required by the system design.

Proper TXV operation helps support:

• Correct refrigerant flow into the evaporator
• Stable evaporator feeding
• Appropriate superheat control
• Consistent refrigeration performance
• Proper evaporator heat absorption
• Reduced risk of evaporator starvation
• Reduced risk of excessive liquid refrigerant return
• Reliable commercial refrigeration operation

Common Signs of a TXV or Refrigerant-Feed Problem

Qualified commercial refrigeration technicians may evaluate the Zero Zone 69-0203-1 when troubleshooting conditions such as:

• Case temperature runs warmer than intended
• Evaporator appears starved
• Abnormally high superheat
• Abnormally low superheat
• Uneven evaporator frost pattern
• Inconsistent refrigeration performance
• Compressor runs for unusually long periods
• Evaporator outlet temperature is abnormal
• Suction pressure differs from expected operating conditions
• TXV inlet or outlet shows abnormal temperature behavior
• Sensing bulb is loose, damaged, or improperly positioned
• Equalizer line is damaged, restricted, or improperly connected where applicable

These symptoms do not automatically confirm TXV failure. Refrigerant charge, evaporator airflow, condenser condition, filter driers, liquid-line restrictions, solenoid valves, compressor performance, sensing-bulb installation, and other refrigeration-system conditions can create similar symptoms. Proper system diagnosis should be completed before replacing the valve.

Technician Checks Before Ordering

Before replacing the Zero Zone 69-0203-1 expansion valve, qualified refrigeration technicians should verify:

• OEM part number 69-0203-1
• Complete Zero Zone equipment model
• Equipment serial number
• Original TXV identification
• Refrigerant type
• Valve capacity/application
• Inlet and outlet connection configuration
• External equalizer configuration where applicable
• Sensing-bulb arrangement
• Sensing-bulb placement
• Distributor arrangement where applicable
• Liquid-line condition
• Filter-drier condition
• System superheat and pressures

OEM part-number verification should be the primary method of selecting the replacement. Expansion valves can appear very similar while having different refrigerant applications, capacities, port configurations, power elements, equalizer arrangements, and operating characteristics.

Sensing Bulb Inspection

The sensing bulb is a critical part of TXV operation. Incorrect bulb installation can cause symptoms that resemble valve failure even when the valve body itself is functioning correctly.

Technicians should inspect for:

• Loose bulb attachment
• Incorrect bulb location
• Poor thermal contact with the suction line
• Damaged bulb or capillary
• Improper insulation where required
• Mounting on an inappropriate section of tubing
• Oil, oxidation, or debris interfering with thermal contact

The sensing bulb should be mounted according to the equipment and valve manufacturer's requirements before final superheat evaluation is performed.

Diagnosing an Evaporator That Appears Starved

An evaporator with high superheat or limited refrigerant feed does not automatically have a failed TXV. The complete liquid-feed path should be checked before replacing the valve.

Possible causes include:

• Low refrigerant charge
• Restricted filter drier
• Restricted liquid line
• Partially closed service valve
• Restricted solenoid valve
• Restricted TXV inlet screen where applicable
• Incorrect TXV adjustment
• Sensing-bulb problem
• Incorrect refrigerant
• Insufficient condensing pressure

System pressures, superheat, subcooling, and temperature measurements should be used together when determining the source of a refrigerant-feed problem.

Diagnosing Low Superheat or Flooding

A TXV that feeds excessive refrigerant can contribute to low superheat or liquid refrigerant returning toward the compressor. However, the valve should not be condemned until the complete system is evaluated.

Technicians may need to inspect:

• Sensing-bulb location and mounting
• TXV adjustment
• Evaporator airflow
• System load
• Refrigerant charge
• Equalizer connection where applicable
• Compressor operating conditions

Correct diagnosis is especially important because liquid refrigerant return can damage a compressor if the underlying condition is not corrected.

Refrigerant System Service Notes

Replacing a TXV requires opening the sealed refrigeration system and should be performed by qualified commercial refrigeration personnel using appropriate refrigerant recovery, brazing, nitrogen-purge, leak-testing, evacuation, and charging procedures.

Before removing the original valve, document the refrigerant-line connections, sensing-bulb location, equalizer connection where applicable, and valve orientation.

Protect the replacement valve from excessive heat during brazing according to appropriate service procedures. After installation, leak-test the system, evacuate as required, restore the correct refrigerant charge, and verify operating pressures, superheat, subcooling, evaporator performance, and final cabinet temperature.

Why Correct OEM TXV Identification Matters

Thermostatic expansion valves can look nearly identical while having different refrigerant ratings, tonnage or capacity ranges, connection sizes, power elements, superheat characteristics, and equalizer arrangements.

Using Zero Zone OEM part number 69-0203-1 as the primary identification reference helps technicians and purchasing departments select the correct valve instead of relying solely on appearance.

Always verify the complete equipment model, serial number, refrigerant type, original TXV, and refrigeration-system configuration before ordering.

Commercial Refrigeration Applications

Zero Zone equipment using this type of TXV is commonly installed in demanding commercial refrigeration environments including:

• Supermarkets
• Grocery stores
• Convenience stores
• Food retail operations
• Commercial kitchens
• Institutional foodservice facilities
• Cold-storage applications
• Commercial display refrigeration

Frequently Asked Questions

What is the Zero Zone 69-0203-1?

The Zero Zone 69-0203-1 is an OEM thermostatic expansion valve used in compatible Zero Zone commercial refrigeration equipment.

What does a TXV do?

A thermostatic expansion valve meters liquid refrigerant into the evaporator and responds to system conditions to help maintain proper refrigerant feed and superheat.

Can a bad TXV cause a case to run warm?

Yes. A restricted or improperly feeding TXV can reduce evaporator refrigerant flow and contribute to poor cooling. Low charge, liquid-line restrictions, airflow problems, and other refrigeration issues can produce similar symptoms.

Can a TXV cause high superheat?

Yes. High superheat can result from insufficient refrigerant feed, but low refrigerant charge, a restricted drier, liquid-line restriction, sensing-bulb problems, or other system conditions can create the same symptom.

Can a TXV cause low superheat?

Yes. Excessive feeding can contribute to low superheat, but sensing-bulb placement, system load, airflow, charge, and other conditions should also be evaluated.

Should the sensing bulb be checked before replacing the valve?

Yes. Bulb position, attachment, thermal contact, and condition are critical to correct TXV operation and should be inspected before condemning the valve.

Does replacing a TXV require sealed-system service?

Yes. TXV replacement requires opening the refrigeration circuit and should be performed using proper refrigerant recovery, leak testing, evacuation, and charging procedures.

How do I confirm Zero Zone 69-0203-1 is the correct replacement?

Verify OEM part number 69-0203-1, the complete Zero Zone model and serial number, refrigerant type, original valve identification, line connections, sensing-bulb arrangement, and equalizer configuration where applicable.

Is professional installation recommended?

Yes. Expansion valves are sealed-system refrigeration components and should be diagnosed and installed by qualified commercial refrigeration service personnel.

Why Buy From Parts Direct Online?

Parts Direct Online supplies OEM commercial refrigeration and commercial cooking replacement parts for service technicians, contractors, supermarkets, restaurants, convenience stores, schools, hospitals, institutional kitchens, and foodservice facilities throughout the United States. Our focus is helping commercial equipment professionals identify the correct OEM replacement component and minimize costly equipment downtime.
