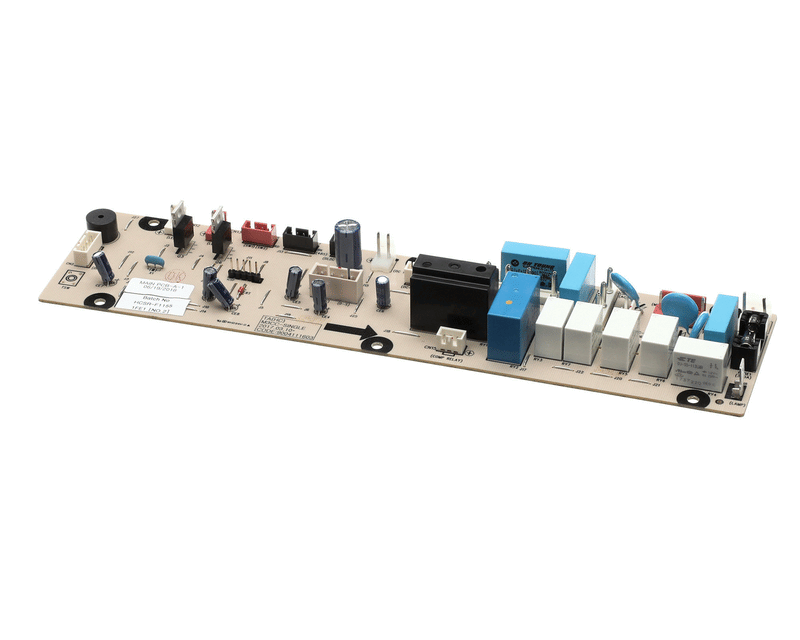

Turbo Air P0143N0100 OEM Main PCB Control Board – HCSR_F1156

Turbo Air P0143N0100 OEM Main PCB Control Board – HCSR_F1156

The Turbo Air P0143N0100 Main PCB Control Board is a genuine OEM electronic control component designed for compatible Turbo Air commercial refrigeration equipment. Turbo Air identifies this board as MAIN PCB HCSR_F1156 within the applicable refrigerator control system.

The main PCB serves as a central electronic control point within the refrigeration system. Connected sensors, power-supply components, displays, relays, fans, compressor circuits, and other electrical devices communicate with or are managed through the board according to the equipment's control design.

When qualified electrical diagnosis confirms main-board replacement is required, using the correct Turbo Air OEM P0143N0100 helps restore the original electronic control configuration intended for compatible Turbo Air refrigeration equipment.

OEM Part Details

• Manufacturer: Turbo Air
• OEM Part Number: P0143N0100
• MPN: P0143N0100
• Part Type: Main PCB / Main Control Board
• PCB Identification: HCSR_F1156
• Application: Commercial Refrigeration
• System: Electronic Refrigeration Control
• Function: Main Equipment Control / Input & Output Processing
• Approx. Length: 10.9"
• Approx. Width: 5.55"
• Approx. Height: 2.35"
• Approx. Weight: 0.4 lb.

Verified Turbo Air Model Applications

Turbo Air's own TSR/TSF service documentation identifies P0143N0100 with applicable refrigerator models including:

• TSR-23SD-N6
• TSR-23GSD-N6
• TSR-35SD-N6
• TSR-35GSD-N
• TSR-49SD-N6
• TSR-49GSD-N
• TSR-72SD-N
• TSR-72GSD-N

Fitment Note: Turbo Air equipment can vary by serial number, production revision, harness configuration, power-supply arrangement, and control generation. Always verify OEM part number P0143N0100, complete equipment model, serial number, original PCB markings, connector layout, and Turbo Air service documentation before ordering.

What the Turbo Air P0143N0100 Control Board Does

The P0143N0100 Main PCB operates as part of the refrigerator's electronic control system. It receives information from connected controls and sensors and provides electrical outputs according to the equipment's programmed operating sequence.

Proper main-board operation helps support:

• Reliable refrigeration control
• Consistent compressor operation
• Proper fan-control sequencing
• Sensor input processing
• Electronic output switching
• Normal display and control-system communication where applicable
• Stable commercial refrigeration operation

HCSR_F1156 Main PCB

Turbo Air's service documentation identifies P0143N0100 with the control designation HCSR_F1156. This secondary identification can be useful when comparing the replacement board with the original component.

The primary ordering reference should remain Turbo Air P0143N0100.

P0143N0100 vs. P0143N0110

Turbo Air also uses other visually similar main control boards, including P0143N0110, which is identified with a different control designation and equipment application.

Do not substitute another Turbo Air PCB simply because the housing or connector layout appears similar. Verify:

• OEM part number
• PCB identification
• Equipment model
• Equipment serial number
• Harness arrangement
• Connector locations

Common Signs of a Main Control Board Problem

Qualified commercial refrigeration technicians may inspect Turbo Air P0143N0100 when troubleshooting conditions such as:

• Equipment does not respond to normal control inputs
• Compressor output does not energize when expected
• Fan operation becomes abnormal or intermittent
• Electronic refrigeration sequence does not progress correctly
• Control functions reset unexpectedly
• Sensor inputs appear abnormal after sensor testing
• Board output voltage is missing when commanded
• Connectors or terminals show heat damage
• PCB components show visible discoloration or burning
• Moisture or corrosion is present around the board
• Harness connections are loose or damaged

These symptoms do not automatically confirm main-board failure. Sensors, probes, wiring, SMPS power supplies, relays, compressors, fan motors, displays, harnesses, and other electrical components can create similar symptoms. Diagnose the complete circuit before replacing the PCB.

Control Board vs. Power Supply Problem

The main PCB depends on the correct electrical supply. Turbo Air's TSR/TSF documentation lists separate SMPS power-supply components within the same control system.

If the board appears completely unresponsive, technicians should verify:

• Incoming equipment voltage
• SMPS / board power supply
• Board input voltage
• Harness continuity
• Fuse or protection devices where applicable
• Grounding
• Connector condition

A failed power supply can make a functional main board appear defective.

Control Board vs. Sensor Problem

The board relies on valid sensor inputs. A damaged sensor or probe circuit can create abnormal control behavior even when the PCB itself remains functional.

Inspect applicable:

• Cabinet temperature sensors
• Defrost probes
• Probe wiring
• Harness connectors
• Sensor terminals
• Sensor resistance or output where applicable

Inspect Harnesses & Connectors

Loose or damaged electrical connections can cause intermittent control issues and may be mistaken for PCB failure.

Inspect for:

• Loose plugs
• Broken locking tabs
• Corroded pins
• Heat-damaged connectors
• Broken conductors
• Pinched wiring
• Moisture contamination
• Loose crimps
• Previous improper wiring repairs

Any damaged harness or connector should be corrected before installing a replacement board.

Inspect for Moisture & Electrical Damage

Electronic control boards are sensitive to moisture, shorts, excessive heat, voltage problems, and poor electrical connections.

Inspect the original PCB for:

• Burned board areas
• Discolored components
• Corrosion
• Moisture residue
• Damaged terminals
• Loose electronic components
• Evidence of electrical arcing

If an external electrical problem damaged the original board, correct that condition before installing the replacement PCB.

Technician Checks Before Ordering

Before ordering Turbo Air P0143N0100, verify:

• OEM part number P0143N0100
• Control identification HCSR_F1156
• Complete Turbo Air equipment model
• Equipment serial number
• Original board markings
• Connector layout
• Harness configuration
• Mounting arrangement
• Power-supply configuration
• Connected sensors and probes
• Related electronic-control components

Do not order a main control board by appearance alone. Turbo Air boards can use similar housings and connectors while having different programming, inputs, outputs, and model applications.

Commercial Refrigeration Applications

Turbo Air commercial refrigeration equipment using electronic main-control boards is commonly installed in:

• Restaurants
• Commercial kitchens
• Supermarkets
• Convenience stores
• Hotels
• Schools
• Hospitals
• Institutional kitchens
• Bars
• Foodservice facilities

Installation & Electrical Safety Notes

Disconnect electrical power before servicing electronic refrigeration controls.

Before removing the original P0143N0100 PCB, photograph or document:

• Every harness connection
• Connector positions
• Board orientation
• Mounting location
• Sensor connections
• Power connections
• Output connections
• Grounding arrangement

Compare the replacement Turbo Air P0143N0100 with the original board before installation.

After installation, qualified technicians should verify:

• Board powers normally
• Sensor inputs are recognized correctly
• Compressor output operates correctly
• Fan outputs respond normally
• No intermittent resets occur
• Refrigeration sequence operates normally
• Connectors remain secure
• No abnormal electrical heating occurs
• Cabinet temperature stabilizes correctly

Why Correct Turbo Air OEM Identification Matters

Commercial refrigeration control boards can look very similar while using different programming, connector layouts, sensors, outputs, and equipment-specific logic.

Using Turbo Air OEM part number P0143N0100 together with the verified HCSR_F1156 identification provides the strongest replacement reference.

Frequently Asked Questions

What is Turbo Air P0143N0100?

Turbo Air P0143N0100 is a genuine OEM main PCB / main control board used in compatible Turbo Air commercial refrigeration equipment.

What PCB identification is associated with P0143N0100?

Turbo Air's own service documentation identifies P0143N0100 as HCSR_F1156.

What are the approximate dimensions?

Parts Town publishes dimensions of approximately 10.9" long x 5.55" wide x 2.35" high.

Which Turbo Air models use P0143N0100?

Turbo Air's TSR/TSF documentation lists TSR-23SD-N6, TSR-23GSD-N6, TSR-35SD-N6, TSR-35GSD-N, TSR-49SD-N6, TSR-49GSD-N, TSR-72SD-N, and TSR-72GSD-N applications.

Can a bad power supply make the main PCB appear defective?

Yes. The PCB requires the proper electrical supply, so the power-supply circuit should be verified before replacing the board.

Can a bad sensor make the control board appear defective?

Yes. Incorrect sensor input can cause abnormal control behavior even when the PCB remains functional.

Should harnesses be inspected before replacing the board?

Yes. Loose, damaged, burned, or corroded connectors can cause intermittent operation or missing control signals.

Is P0143N0100 the same as P0143N0110?

No. They are separate Turbo Air main PCB part numbers with different control designations and equipment applications.

Can I replace P0143N0100 with another Turbo Air control board that looks similar?

No. Verify OEM number P0143N0100, HCSR_F1156 identification, model, serial number, harnesses, connectors, and service documentation.

How do I confirm P0143N0100 is correct?

Verify OEM part number P0143N0100, complete Turbo Air model and serial number, original PCB markings, harness configuration, connector layout, power-supply arrangement, and equipment documentation before ordering.

Is professional installation recommended?

Yes. Commercial refrigeration electronic control boards should be diagnosed and installed by qualified refrigeration service personnel.
