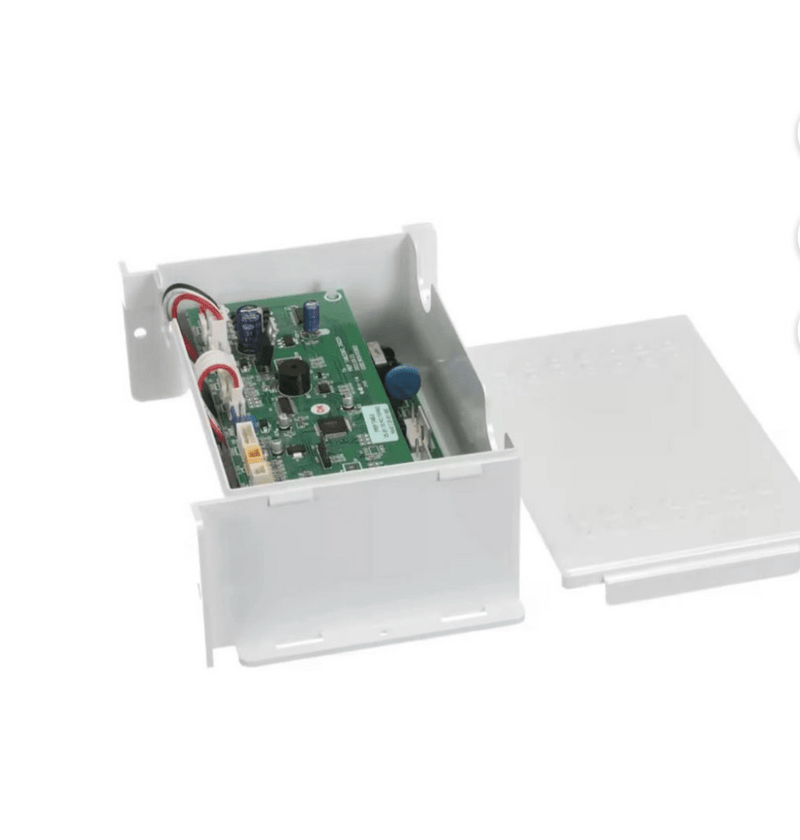

Turbo Air AA0410300A OEM Main PCB Control Board

Turbo Air AA0410300A OEM Main PCB Control Board

The Turbo Air AA0410300A Main PCB Assembly is a genuine OEM electronic control board designed for compatible Turbo Air commercial refrigeration equipment. This main control board serves as a central part of the refrigeration control system, receiving input from connected sensors and controls and directing electrical outputs according to the equipment's programmed operating sequence.

Reliable control-board operation is critical to commercial refrigeration performance. A board that becomes electrically damaged, develops failed outputs, experiences connector problems, or no longer processes control inputs correctly can contribute to abnormal refrigeration cycling, sensor faults, fan or compressor control problems, intermittent equipment operation, or complete loss of control functions.

When qualified electrical diagnosis confirms main control-board replacement is required, using the correct Turbo Air OEM AA0410300A helps restore the original control configuration intended for compatible Turbo Air refrigeration equipment.

OEM Part Details & Identification

• Manufacturer: Turbo Air
• OEM Part Number: AA0410300A
• MPN: AA0410300A
• Part Type: Main PCB Assembly / Control Board
• PCB Marking: PC115F002
• Board Configuration: Double-Layer Main PCB

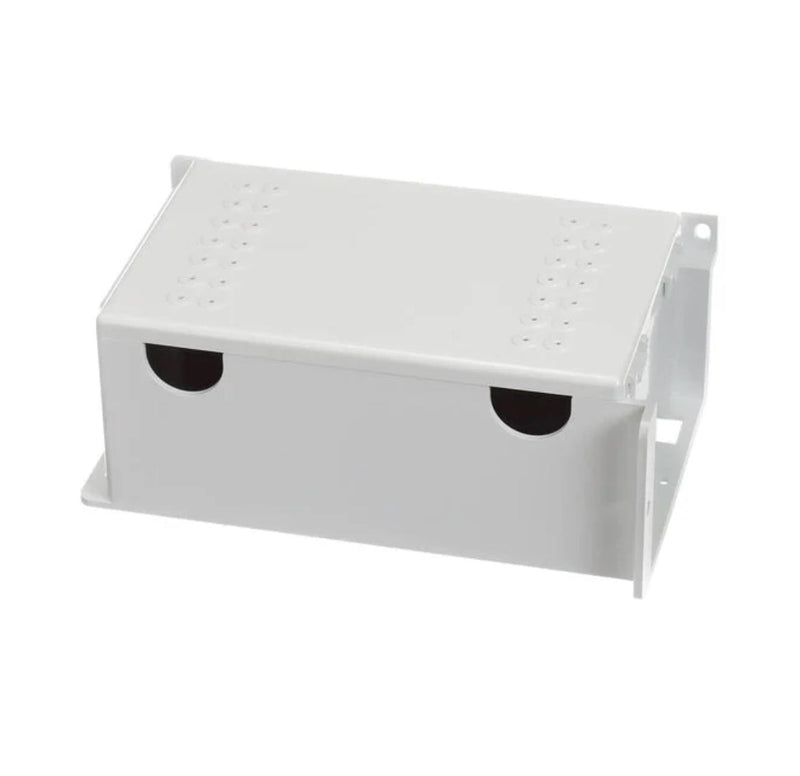

• Enclosure: White Protective Box
• Approx. Enclosure Width: 4-1/8"
• Approx. Enclosure Length: 6-1/2"
• Application: Commercial Refrigeration Equipment
• System: Electronic Refrigeration Control
• Function: Main Equipment Control / Input & Output Processing

What the Turbo Air AA0410300A Control Board Does

The AA0410300A Main PCB functions as a primary electronic control point within compatible Turbo Air refrigeration equipment. Connected sensors, controls, harnesses, and electrical components communicate with the board so the equipment can respond to changing operating conditions.

Depending on the specific equipment configuration, proper main-board operation can support:

• Temperature-control sequencing
• Compressor control
• Evaporator and condenser fan operation
• Sensor input processing
• Defrost-related control functions
• Electronic control outputs
• Reliable refrigeration cycling
• Stable commercial refrigeration operation

PC115F002 Double-Layer Control Board

Published commercial service information identifies Turbo Air AA0410300A as a double-layer main PCB marked PC115F002. It is supplied inside a white protective enclosure approximately 4-1/8" wide by 6-1/2" long.

The board marking is a useful secondary identification point, but the primary ordering reference should remain Turbo Air OEM AA0410300A.

Verified Turbo Air Model Fitment

Current Turbo Air parts sources identify AA0410300A with compatible applications including:

• MST-48-N
• MST-48-18-N
• MST-60-N
• MST-60-24-N
• MST-72-N
• MST-72-30-N
• MUF-28-N
• MUF-48-N
• MUR-72-N
• TST-36SD-15-N6

Fitment Note: Turbo Air equipment can vary by serial number, production revision, control-system generation, sensor configuration, and harness arrangement. Always verify OEM part number AA0410300A, the complete equipment model and serial number, original board markings, connector layout, and equipment service documentation before ordering.

Common Signs of a Main Control Board Problem

Qualified commercial refrigeration technicians may inspect the Turbo Air AA0410300A when troubleshooting conditions such as:

• Equipment does not respond to normal control inputs
• Compressor or fan output does not energize when commanded
• Refrigeration operation becomes intermittent
• Control functions reset unexpectedly
• Sensor input appears incorrect even after sensor testing
• Defrost or fan sequencing becomes abnormal
• Board does not provide the expected output voltage
• Connectors or terminals show heat damage
• PCB shows visible burned components or discoloration
• Moisture or corrosion is visible inside the control enclosure
• Harness connections are loose or damaged

These symptoms do not automatically confirm board failure. Sensors, probes, wiring, power supplies, relays, contactors, compressors, fan motors, connectors, and other control components can produce similar symptoms. Diagnose the complete control circuit before replacing the main PCB.

Control Board vs. Sensor Problem

The AA0410300A depends on accurate information from connected sensors and probes. A failed sensor or damaged sensor wiring can make a functional control board appear defective.

Before replacing the main PCB, technicians should inspect applicable:

• Temperature probes
• Defrost sensors
• Sensor wiring
• Harness connectors
• Control-board input terminals
• Sensor resistance or output where applicable

Published service information specifically references related probes for this control-board system, reinforcing the importance of testing the sensing circuit before condemning the PCB.

Control Board vs. Power Supply Problem

A control board cannot operate correctly without the proper electrical supply. If the board appears completely unresponsive, technicians should verify input power before replacing the PCB.

Check:

• Incoming equipment voltage
• Board power-supply input
• Fuses or protective devices where applicable
• Power-supply components
• Harness continuity
• Connector condition
• Equipment grounding

Inspect Harnesses & Connectors

Loose, corroded, damaged, or overheated connections can cause intermittent control problems even when the main PCB itself is functional.

Inspect for:

• Loose plugs
• Broken locking tabs
• Corroded pins
• Heat-damaged connectors
• Broken conductors
• Pinched wiring
• Moisture contamination
• Loose crimps
• Previous improper electrical repairs

Any damaged harness or connection should be corrected before a replacement control board is installed.

Inspect for Moisture & Electrical Damage

Electronic control boards are sensitive to moisture, electrical shorts, excessive heat, and poor electrical connections.

Inspect the original AA0410300A for:

• Burned PCB areas
• Discolored components
• Corrosion
• Moisture residue
• Damaged terminals
• Loose components
• Evidence of electrical arcing

If an external electrical fault damaged the original board, correct that fault before installing the replacement or the new PCB may also be damaged.

Technician Checks Before Ordering

Before ordering Turbo Air AA0410300A, verify:

• OEM part number AA0410300A
• Board marking PC115F002 where applicable
• Complete Turbo Air equipment model
• Equipment serial number
• Original board markings
• Connector layout
• Harness arrangement
• Mounting configuration
• Control enclosure style
• Connected sensor configuration
• Related electrical-control components

Do not select a control board by appearance alone. Turbo Air control boards can have similar housings and connector layouts while using different programming, inputs, outputs, and equipment applications.

Commercial Refrigeration Applications

Turbo Air commercial refrigeration equipment using electronic control boards is commonly installed in demanding foodservice environments including:

• Restaurants
• Commercial kitchens
• Supermarkets
• Convenience stores
• Hotels
• Schools
• Hospitals
• Institutional kitchens
• Bars
• Foodservice facilities

Installation & Electrical Safety Notes

Disconnect electrical power before servicing electronic refrigeration controls.

Before removing the original AA0410300A board, photograph or document:

• Every harness connection
• Connector positions
• Board orientation
• Mounting location
• Sensor connections
• Output connections
• Grounding arrangement

Compare the replacement Turbo Air AA0410300A with the original board before installation.

After installation, qualified technicians should verify:

• Board powers normally
• Sensor inputs are recognized correctly
• Compressor and fan outputs respond correctly
• No intermittent resets occur
• Defrost and refrigeration sequences operate normally
• Connectors remain secure
• No abnormal electrical heating is present
• Cabinet temperature stabilizes normally

Why Correct Turbo Air OEM Identification Matters

Commercial refrigeration control boards can look very similar while using different firmware, connector layouts, sensor inputs, output assignments, and equipment-specific control logic.

Using Turbo Air OEM part number AA0410300A together with the secondary PC115F002 board marking provides a strong identification method when comparing the replacement with the original board.

Frequently Asked Questions

What is Turbo Air AA0410300A?

Turbo Air AA0410300A is a genuine OEM main PCB assembly / control board used in compatible Turbo Air commercial refrigeration equipment.

Is AA0410300A a genuine Turbo Air OEM control board?

Yes. Current OEM parts listings identify AA0410300A as a genuine Turbo Air main PCB assembly.

What marking may be found on the board?

Commercial service information identifies this board with the marking PC115F002.

What size is the control enclosure?

Published service information describes the white enclosure at approximately 4-1/8" wide x 6-1/2" long.

Which Turbo Air models use AA0410300A?

Published sources include MST-48-N, MST-48-18-N, MST-60-N, MST-60-24-N, MST-72-N, MST-72-30-N, MUF-28-N, MUF-48-N, MUR-72-N, and TST-36SD-15-N6. Always verify model and serial number before ordering.

Can a bad sensor make the control board appear defective?

Yes. Incorrect sensor input, damaged wiring, or poor harness connections can create symptoms that resemble main-board failure.

Can a bad power supply cause a blank or unresponsive control board?

Yes. Verify the board's electrical supply before replacing the PCB.

Should harnesses be inspected before replacing the board?

Yes. Loose, corroded, burned, or damaged connectors can interfere with control-board operation.

Can I replace AA0410300A with another Turbo Air control board that looks similar?

No. Verify OEM part number AA0410300A, board markings, connector arrangement, equipment model, serial number, and service documentation before ordering.

How do I confirm AA0410300A is correct?

Verify OEM part number AA0410300A, complete Turbo Air model and serial number, original PCB markings, connector layout, mounting arrangement, sensors, and harness configuration before ordering.

Is professional installation recommended?

Yes. Commercial refrigeration electronic control boards should be diagnosed and installed by qualified refrigeration service personnel.
