Component Hardware W28-3400 Recessed Inside Safety Release for 4" Walk-In Door

Component Hardware W28-3400 Recessed Inside Safety Release

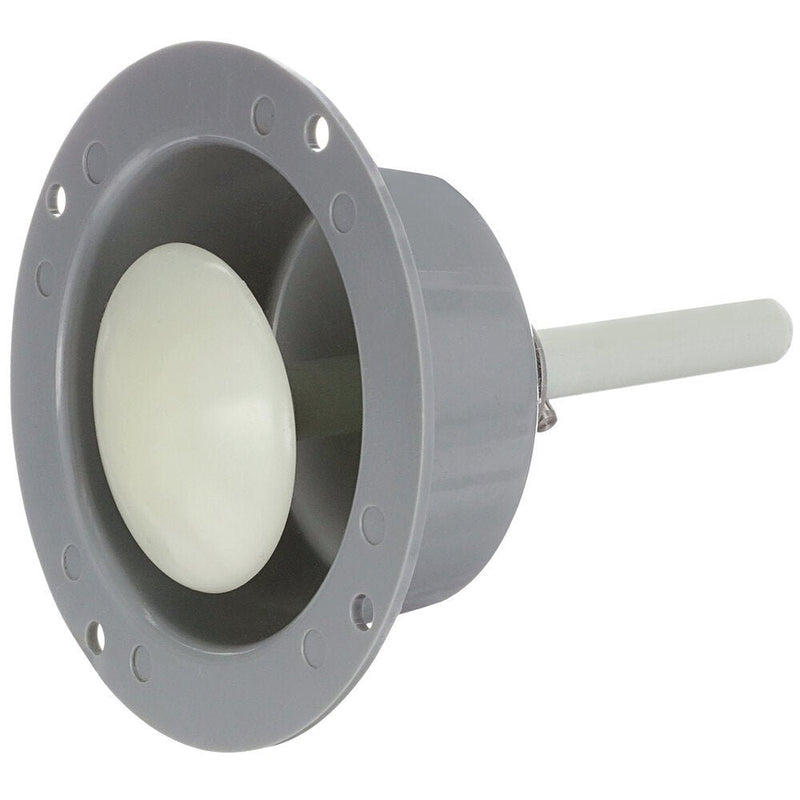

The Component Hardware W28-3400 is a recessed inside safety release designed for 4-inch-thick commercial walk-in cooler and walk-in freezer doors. This W28 Series release provides a mechanical means of opening the walk-in door from the inside and is designed for commercial refrigeration door applications.

The recessed cup helps protect the inside release knob from carts, crates, hand trucks, and other traffic inside the walk-in. The assembly features a glow-in-the-dark safety knob and a non-conductive fiberglass-reinforced polyester push rod for dependable use in refrigerated environments.

Product Details

• Manufacturer: Component Hardware Group / CHG
• Part Number: W28-3400
• Series: W28
• Part Type: Inside Safety Release
• Application: Commercial walk-in cooler and freezer doors
• Mounting Style: Recessed
• Door Thickness: 4 inches / 102 mm
• Knob: Glow-in-the-dark safety knob
• Push Rod: Non-conductive fiberglass-reinforced polyester
• Outer Flange Diameter: Approximately 4-7/16 inches
• Required Opening: Approximately 3-1/2 inches
• Mounting Pattern: Four-hole mounting pattern

What the W28-3400 Does

The inside safety release is an important part of a commercial walk-in door assembly. When the interior release is activated, the push rod transfers force to the exterior latch mechanism so the walk-in door can be opened from the inside.

The recessed design positions the release knob inside a protective cup, helping reduce accidental impact and damage from equipment or product being moved inside the walk-in.

Common Reasons for Replacement

• Push rod is cracked, bent, or damaged
• Inside release knob is broken or missing
• Recessed cup or mounting flange is damaged
• Inside release no longer operates the exterior latch correctly
• Release mechanism sticks or does not move freely
• Walk-in door latch or safety hardware is being rebuilt

Commercial Applications

The Component Hardware W28-3400 is designed for commercial refrigerated walk-in door applications commonly found in restaurants, supermarkets, convenience stores, foodservice operations, institutional kitchens, warehouses, and other facilities using walk-in coolers or freezers.

Before You Order

Confirm the W28-3400 part number, recessed mounting configuration, and 4-inch door thickness before ordering. Component Hardware manufactures W28 Series safety releases for different door thicknesses and mounting arrangements.

Do not select an inside safety release based only on appearance. Compare the existing part number, mounting style, door thickness, dimensions, and latch configuration to the original component before ordering.

Frequently Asked Questions

What is the Component Hardware W28-3400?
The W28-3400 is a recessed inside safety release used with commercial walk-in cooler and freezer door assemblies.

What door thickness is the W28-3400 designed for?
The W28-3400 recessed configuration is designed for a 4-inch-thick walk-in door.

Is the W28-3400 surface mounted?
No. The W28-3400 is a recessed-mount inside safety release.

Does the W28-3400 have a glow-in-the-dark knob?
Yes. The inside safety release uses a glow-in-the-dark safety knob to help make the release easier to locate inside a dark walk-in.

What is the push rod made from?
The push rod is manufactured from non-conductive fiberglass-reinforced polyester for use in refrigerated door applications.

Can the W28-3400 be used on walk-in freezers?
It is designed for commercial refrigerated walk-in door applications. Always confirm the original part number, door thickness, mounting arrangement, and latch configuration before ordering.

How do I know if W28-3400 fits my walk-in door?
Verify the existing part number and confirm that the door is approximately 4 inches thick with the matching recessed mounting configuration. Do not rely on appearance alone when determining fitment.
