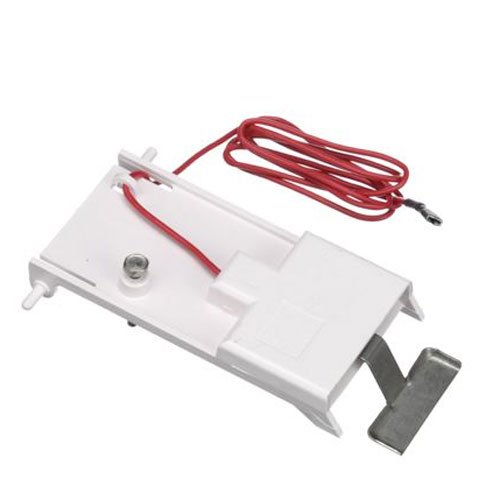

Manitowoc 2008029 OEM Ice Thickness Control Probe

Manitowoc 2008029 OEM Ice Thickness Control Probe

The Manitowoc Ice 2008029 Ice Thickness Control Probe is a genuine OEM sensing component designed for compatible Manitowoc commercial ice machines. The probe works with the machine's electronic control system to monitor ice formation at the evaporator and provide the signal used by applicable Manitowoc systems to determine when the ice slab has reached the intended thickness.

Accurate ice-thickness sensing is critical to consistent commercial ice production. A probe that is dirty, damaged, incorrectly positioned, electrically unreliable, or restricted from moving correctly can contribute to ice that is too thin or too thick, delayed harvest, premature harvest, inconsistent cube bridging, or abnormal machine cycling.

When qualified diagnosis confirms ice-thickness probe replacement is required, using the correct Manitowoc OEM 2008029 helps restore the original sensing configuration intended for compatible Manitowoc ice-making equipment.

OEM Part Details

• Manufacturer: Manitowoc Ice
• OEM Part Number: 2008029
• MPN: 2008029
• Part Type: Ice Thickness Control Probe
• Application: Commercial Ice Machines
• System: Ice Thickness / Freeze & Harvest Control
• Function: Ice Formation Sensing / Harvest Initiation Feedback

What the Manitowoc 2008029 Probe Does

The Manitowoc 2008029 ice thickness probe monitors ice formation at the evaporator during the freeze cycle. On applicable Manitowoc S-Series systems, Manitowoc documents that water contacting the probe continuously for the required period completes the sensing circuit and initiates the harvest sequence once the proper ice bridge has formed.

Proper probe operation helps support:

• Consistent ice bridge thickness
• Reliable transition from freeze to harvest
• Repeatable ice production
• Reduced premature harvest conditions
• Reduced excessively thick ice slabs
• Normal machine cycling
• Dependable commercial ice production

Manitowoc Ice Bridge Thickness

Manitowoc service documentation for applicable machines specifies an ice bridge thickness of approximately 1/8" (3 mm). The ice-thickness probe is adjusted relative to the evaporator so the control system can initiate harvest at the correct point in the freeze cycle.

Probe adjustment procedures can vary by machine family and production revision. Always follow the service documentation for the exact Manitowoc model being serviced rather than transferring adjustment dimensions from another machine.

How the Ice Thickness Probe Initiates Harvest

On applicable Manitowoc S-Series machines, the ice thickness probe uses an electronic sensing circuit rather than relying only on refrigerant pressure, evaporator temperature, water level, or a simple timer.

Manitowoc documents that:

• Ice forms on the evaporator during the freeze cycle.
• Water contacts the ice thickness probe as the ice bridge develops.
• Continuous probe contact for the required interval completes the sensing circuit.
• The machine then transitions into the harvest cycle.

This makes probe cleanliness, position, wiring, and unrestricted movement important to consistent ice-machine operation.

Verified Manitowoc Applications

Manitowoc's own parts documentation identifies OEM 2008029 on equipment including:

• S0600C Series
• S1000 Series
• S1470C Series

Current commercial parts databases show a much broader compatibility range across Manitowoc S-Series equipment, including popular models such as SY1605WP, QY0424A, JC0495 and many additional models.

Fitment Note: Manitowoc parts can vary by machine series, serial number, cube style, production date, and control revision. Always verify OEM number 2008029, complete model, serial number, original probe, mounting arrangement, and Manitowoc service documentation before ordering.

Common Signs of an Ice Thickness Probe Problem

Qualified commercial ice-machine technicians may inspect Manitowoc 2008029 when troubleshooting conditions such as:

• Ice bridge is consistently too thin
• Ice bridge is consistently too thick
• Machine harvests earlier than expected
• Machine remains in freeze longer than expected
• Harvest initiation becomes inconsistent
• Ice slab formation varies between cycles
• Probe is coated with scale or mineral deposits
• Probe is physically damaged
• Probe position has shifted
• Probe wiring is damaged or loose
• Probe or bracket movement is restricted
• Harvest indicator response is abnormal during testing

These symptoms do not automatically confirm probe failure. Water distribution, water level, evaporator condition, control-board operation, wiring, refrigeration-system performance, and machine cleanliness can create similar symptoms. Diagnose the complete ice-making sequence before replacing the probe.

Scale & Mineral Buildup

The ice thickness probe operates in direct contact with the ice-making water environment, making scale and mineral buildup important service concerns.

Inspect for:

• Mineral deposits
• Scale buildup
• Foodservice water contamination
• Residue on the sensing surface
• Restricted probe movement
• Corrosion around electrical connections

A contaminated probe may provide incorrect sensing behavior even when the electrical component itself remains functional.

Probe Cleaning Matters

Manitowoc service literature includes specific cleaning procedures for the ice thickness probe. Cleaning should be completed using approved Manitowoc procedures and chemicals appropriate for the machine.

Do not aggressively scrape, bend, modify, or reposition the probe without following the equipment service instructions.

Probe Position & Movement

The probe and its bracket must remain correctly positioned relative to the evaporator. Manitowoc specifically cautions that the probe wire and bracket should not restrict movement of the probe.

Inspect for:

• Bent mounting bracket
• Probe shifted from the original location
• Wire tension restricting movement
• Loose mounting hardware
• Physical interference with surrounding components
• Incorrect previous adjustment

Diagnosing Thin Ice

Thin ice does not automatically mean the 2008029 probe is defective. Qualified technicians should inspect the complete freeze and sensing system.

Possible inspection points include:

• Probe position
• Probe cleanliness
• Probe adjustment
• Water distribution
• Water level
• Evaporator frost / ice pattern
• Refrigeration-system performance
• Control-board response

Diagnosing Thick Ice

Ice that repeatedly becomes thicker than intended can also result from more than one condition.

Technicians should evaluate:

• Probe adjustment
• Probe sensing response
• Probe wiring
• Scale contamination
• Control-board input
• Water contacting the probe
• Freeze-cycle operation

Probe vs. Control Board Diagnosis

The ice thickness probe provides an input to the machine control system. A control-board or wiring problem can therefore produce symptoms that resemble a failed probe.

Before replacing 2008029, inspect:

• Probe wiring
• Electrical connectors
• Harness condition
• Control-board input
• Harvest indicator response where applicable
• Machine control sequence

Inspect Wiring & Connections

A damaged connection can interrupt the sensing signal even when the probe itself remains functional.

Inspect for:

• Broken conductors
• Loose connectors
• Corrosion
• Pinched wiring
• Damaged insulation
• Moisture contamination
• Loose crimps
• Previous improper wiring repairs

Correct damaged wiring before installing the replacement probe.

Technician Checks Before Ordering

Before ordering Manitowoc 2008029, verify:

• OEM part number 2008029
• Complete Manitowoc Ice model
• Machine serial number
• Original probe identification
• Probe shape and configuration
• Mounting bracket arrangement
• Probe position relative to the evaporator
• Lead / wiring arrangement
• Electrical connector configuration
• Machine control-system generation

Do not select an ice-machine probe by appearance alone. Similar-looking Manitowoc probes can perform different functions, including water-level sensing, ice-thickness sensing, and other control inputs.

Commercial Ice Machine Applications

Manitowoc commercial ice machines are used in demanding foodservice environments including:

• Restaurants
• Bars
• Hotels
• Convenience stores
• Supermarkets
• Hospitals
• Schools
• Universities
• Institutional kitchens
• Corporate cafeterias
• Catering operations
• Commercial foodservice facilities

Installation & Service Notes

Disconnect electrical power before servicing commercial ice-machine controls and follow applicable Manitowoc service procedures.

Before removing the original 2008029 probe, document:

• Probe orientation
• Probe-to-evaporator position
• Bracket position
• Wire routing
• Connector location
• Adjustment position

Compare the replacement Manitowoc 2008029 with the original component before installation.

After installation, qualified technicians should verify:

• Probe is positioned correctly
• Probe movement is unrestricted
• Wiring is secure
• Freeze cycle progresses normally
• Ice bridge thickness is within specification
• Harvest initiates normally
• Repeated freeze / harvest cycles remain consistent

Why Correct Manitowoc OEM Identification Matters

Commercial ice-machine sensors and probes can appear similar while performing completely different control functions.

Using Manitowoc OEM part number 2008029 provides the strongest identification point and helps distinguish this component from water-level probes, harvest floats, thickness floats, and other Manitowoc sensing devices.

Frequently Asked Questions

What is Manitowoc 2008029?

Manitowoc 2008029 is a genuine OEM ice thickness control probe used in compatible Manitowoc commercial ice machines.

What does the ice thickness control probe do?

The probe provides ice-thickness sensing feedback used by the applicable Manitowoc control system to determine when the machine should transition from freeze to harvest.

What ice bridge thickness does Manitowoc specify?

For applicable Manitowoc systems, service documentation specifies an ice bridge thickness of approximately 1/8" (3 mm).

Can a dirty probe cause harvest problems?

Yes. Mineral deposits or contamination can interfere with proper sensing and should be addressed using Manitowoc-approved cleaning procedures.

Can incorrect probe position affect ice thickness?

Yes. Probe position and adjustment affect when the sensing circuit initiates harvest.

Can damaged wiring make the probe appear defective?

Yes. Broken, loose, corroded, or damaged wiring can prevent the control board from receiving the correct probe signal.

Does Manitowoc 2008029 fit S-Series ice machines?

Yes. Manitowoc's own parts documentation lists 2008029 on multiple S-Series machines, including S0600C, S1000 and S1470C equipment.

Does the probe initiate the harvest cycle?

On applicable Manitowoc systems, the electronic sensing circuit uses continuous water contact at the probe as part of the harvest-initiation sequence.

Can I replace 2008029 with another Manitowoc probe that looks similar?

No. Manitowoc uses different probes for different sensing functions. Verify OEM number 2008029, equipment model, serial number, mounting and wiring before ordering.

How do I confirm Manitowoc 2008029 is correct?

Verify OEM part number 2008029, complete Manitowoc model and serial number, original probe, mounting arrangement, connector and applicable service documentation before ordering.

Is professional installation recommended?

Yes. Commercial ice-machine control and sensing components should be diagnosed and installed by qualified foodservice-equipment service personnel.
