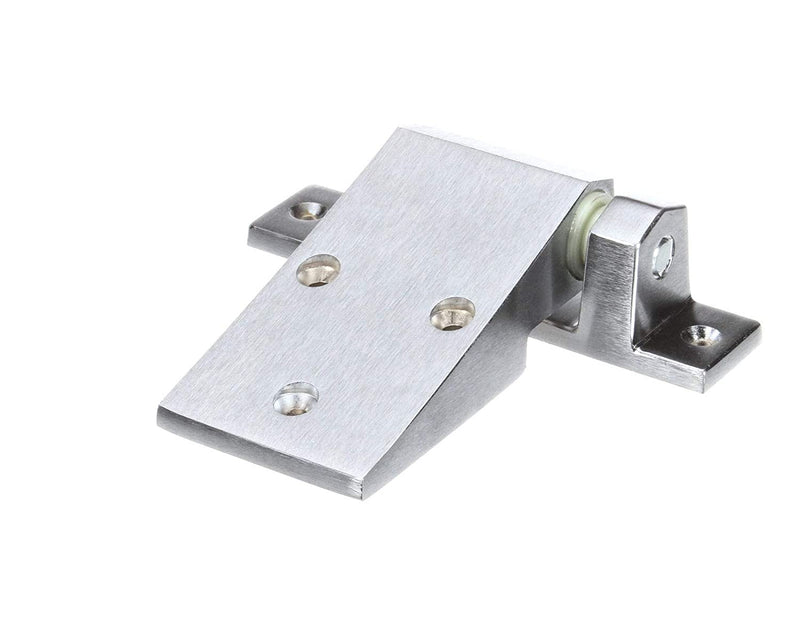

Kolpak 236211075 OEM K-1253 Upper Cam-Lift Reversible Door Hinge

Kolpak 236211075 OEM K-1253 Upper Cam-Lift Reversible Door Hinge

The Kolpak 236211075 Door Hinge is a genuine OEM upper cam-lift hinge designed for compatible Kolpak commercial walk-in cooler and freezer doors. This hinge is identified as a K-1253 upper cam-lift hinge with a flush-offset, reversible configuration that can be used for applicable left- or right-hand door arrangements.

Reliable walk-in door-hinge operation is important because the hinge supports the weight and alignment of the door while allowing controlled opening and closing. A worn, bent, loose, incorrectly adjusted, or damaged hinge can contribute to door sag, uneven gasket compression, difficult closing, latch misalignment, air leakage, frost buildup, or excessive wear on other door components.

When qualified inspection confirms hinge replacement is required, using the correct Kolpak OEM 236211075 helps restore the original upper-door hardware configuration intended for compatible Kolpak walk-in refrigeration equipment.

OEM Part Details & Specifications

• Manufacturer: Kolpak
• OEM Part Number: 236211075
• MPN: 236211075
• Part Type: Upper Door Hinge
• Hinge Style: Cam-Lift
• Hinge Family: K-1253
• Mounting Style: Flush Offset
• Handing: Reversible Left / Right
• Finish: Brushed Chrome
• Published Hinge Reference: approximately 7-1/4" OD
• Application: Commercial Walk-In Coolers & Freezers
• Function: Door Support, Alignment & Cam-Lift Closing Assistance

What the Kolpak 236211075 Hinge Does

The Kolpak 236211075 supports the upper portion of the walk-in door and allows the door to pivot between the open and closed positions. Its cam-lift design raises the door slightly during opening and allows it to settle into the closed position as the hinge rotates through its normal travel.

Proper hinge operation helps support:

• Smooth walk-in door movement
• Proper door alignment
• Consistent gasket compression
• Reliable latch and strike engagement
• Reduced dragging at the threshold
• Reduced unnecessary gasket wear
• Proper cooler or freezer door closure
• Dependable commercial refrigeration operation

K-1253 Upper Cam-Lift Hinge

Current OEM parts listings identify Kolpak 236211075 as a K-1253 upper cam-lift hinge. The cam-lift mechanism is an important part of the hinge's operation and should be considered when comparing the replacement with the removed hardware.

Do not substitute another hinge solely because the mounting plate or overall appearance looks similar. Walk-in door hinges can differ in cam profile, offset, handedness, mounting pattern, door weight rating, spring arrangement, and equipment application.

Flush Offset & Reversible Configuration

Commercial service-parts documentation describes 236211075 as a flush-offset reversible hinge. This allows the hinge to be used in applicable left- or right-hand door configurations when installed according to the original Kolpak door arrangement.

Before ordering, compare:

• Upper-hinge position
• Flush-offset geometry
• Door handing
• Mounting-hole pattern
• Door-to-frame relationship
• Original hinge markings
• Cam-lift configuration

Verified Kolpak Model References

Published service-parts data associates Kolpak 236211075 with compatible applications including:

• 18402S
• 18408S
• 18715S
• 18815S
• 5198237A

Fitment Note: Walk-in door hardware can vary by door size, production date, hinge revision, frame configuration, and serial number. Always verify OEM number 236211075, complete equipment identification, original hinge, door handing, offset, mounting pattern, and Kolpak service documentation before ordering.

Common Signs of a Worn or Damaged Walk-In Door Hinge

• Door sags or hangs unevenly
• Door drags on the threshold
• Door no longer closes squarely
• Latch and strike no longer align
• Excessive play is present at the upper hinge
• Hinge binds during opening or closing
• Door requires unusual force to move
• Cam-lift action is no longer smooth
• Mounting hardware repeatedly loosens
• Hinge plate is bent or physically damaged
• Gasket compression becomes uneven
• Frost or condensation develops around one side of the door

These symptoms do not automatically confirm hinge failure. Lower hinges, door closers, latch hardware, frame alignment, gasket condition, mounting surfaces, and door-panel damage can create similar symptoms. Inspect the complete door assembly before replacing components.

Inspect the Lower Hinge

Upper and lower door hardware work together to support and align the walk-in door. If the upper hinge is worn or damaged, inspect the lower hinge at the same time.

Check for:

• Excessive play
• Cam wear
• Loose mounting hardware
• Bent mounting plates
• Misalignment
• Corrosion
• Physical damage

Replacing only one hinge may not correct door alignment if another hinge or mounting point is also worn.

Inspect the Door Gasket

Hinge problems can affect how the gasket contacts the walk-in frame. Uneven door alignment may create areas of poor gasket compression even when the gasket itself is still usable.

Inspect for:

• Uneven gasket compression
• Visible air gaps
• Torn or damaged gasket material
• Flattened sections
• Frost near the door perimeter
• Condensation around the opening

Inspect the Latch & Strike

A sagging or misaligned door can move the latch out of position relative to the strike.

Before adjusting or replacing latch hardware, verify that the door is properly supported and aligned by the hinges.

Cam-Lift Operation

The cam-lift mechanism helps control the vertical movement of the door through its opening and closing cycle. If cam surfaces are worn, damaged, or binding, the door may not lift or settle into the closed position correctly.

Inspect for:

• Worn cam surfaces
• Binding
• Abnormal vertical movement
• Metal wear debris
• Loose hinge components
• Damage to the hinge body

Spring Cartridge Consideration

RHS service notes indicate that Kolpak hinges of this type are normally cam lift and reference a separate spring cartridge assembly where applicable. If the door-closing action involves additional spring hardware, inspect those components before assuming the complete hinge is the only failed part.

Technician Checks Before Ordering

Before ordering Kolpak 236211075, verify:

• OEM part number 236211075
• K-1253 hinge configuration
• Upper hinge position
• Cam-lift design
• Flush-offset arrangement
• Left/right reversible requirement
• Original mounting-hole pattern
• Door handing
• Door-to-frame alignment
• Complete Kolpak equipment identification
• Door serial / production information where available

Do not order a walk-in hinge by appearance alone. Similar Kolpak and Kason-style hinges can use different cam profiles, offsets, handedness, mounting points, spring arrangements, and door applications.

Commercial Walk-In Applications

Kolpak door hardware is used in commercial refrigeration environments including:

• Walk-in coolers
• Walk-in freezers
• Restaurant cold storage
• Supermarkets
• Hotels
• Schools
• Hospitals
• Institutional kitchens
• Food distribution facilities
• Commercial foodservice operations

Installation & Service Notes

A walk-in door can be heavy and difficult to control when hinge hardware is removed. Properly support the door before loosening or removing the original hinge.

Before removal, document:

• Hinge orientation
• Mounting-hole locations
• Door handing
• Door-to-frame offset
• Original shim arrangement where applicable
• Door alignment

Compare the replacement Kolpak 236211075 with the original hinge before installation.

After installation, verify:

• Door moves smoothly
• Cam-lift action operates normally
• Door remains properly aligned
• Door does not drag
• Gasket compression is even
• Latch and strike engage correctly
• Mounting hardware remains secure
• Door closes without abnormal resistance

Why Correct Kolpak OEM Identification Matters

Walk-in door hinges can look nearly identical while using different cam-lift mechanisms, offsets, mounting patterns, door handing, and spring configurations.

Using Kolpak OEM part number 236211075 together with the K-1253 upper cam-lift, flush-offset, reversible identification provides the strongest replacement reference.

Frequently Asked Questions

What is Kolpak 236211075?

Kolpak 236211075 is a genuine OEM upper cam-lift walk-in door hinge used in compatible Kolpak commercial refrigeration equipment.

Is Kolpak 236211075 a K-1253 hinge?

Yes. Current OEM listings identify 236211075 as a K-1253 upper cam-lift hinge.

Is the hinge reversible?

Yes. Published service-parts data describes 236211075 as reversible for applicable left- or right-hand door configurations.

Is it a flush-offset hinge?

Yes. RHS and other current service sources describe the hinge as a flush-offset reversible design.

What finish does the hinge have?

Published descriptions identify a brushed chrome finish.

What does cam lift mean?

A cam-lift hinge raises the door slightly during its movement and allows it to settle into the closed position, helping reduce drag and support proper door closure.

Can a worn hinge cause gasket leaks?

Yes. Door sag or hinge misalignment can cause uneven gasket compression and allow warm, moist air to enter the refrigerated enclosure.

Should the lower hinge be checked too?

Yes. Upper and lower hinges work together to support and align the door, so both should be inspected during service.

Which Kolpak models use 236211075?

Published fitment references include 18402S, 18408S, 18715S, 18815S, and 5198237A. Verify the complete equipment and door configuration before ordering.

Can I replace 236211075 with another Kason-style hinge that looks similar?

No. Verify OEM number 236211075, K-1253 configuration, cam-lift style, offset, mounting pattern, handing, and door application before ordering.

How do I confirm Kolpak 236211075 is correct?

Verify OEM part number 236211075, complete Kolpak equipment identification, original hinge markings, mounting pattern, door handing, flush offset, and cam-lift configuration before ordering.

Is professional installation recommended?

Qualified commercial refrigeration or walk-in door service personnel can safely support the door and verify hinge alignment, gasket compression, latch engagement, and closing operation during replacement.
