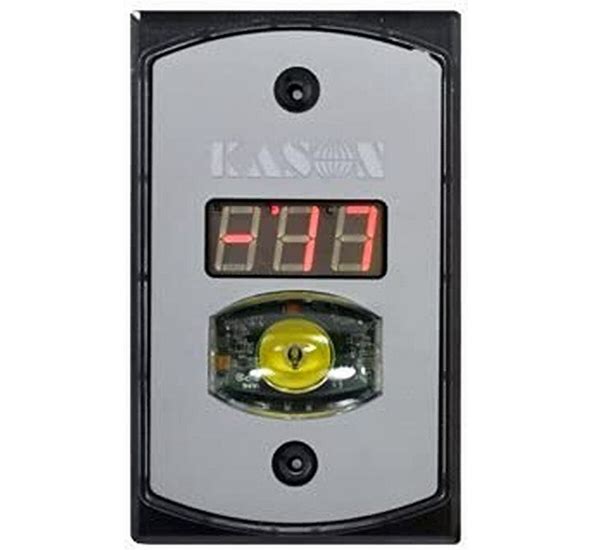

Kason 119670000A3 OEM Temperature Display & Switch Kit 120V

Kason 119670000A3 OEM Temperature Display & Switch Kit – 120V

The Kason 119670000A3 Temperature Display and Switch Kit is an OEM commercial refrigeration control and monitoring assembly designed for compatible equipment applications. This 120V kit combines a temperature display with an integrated switch assembly in a compact panel-mounted configuration for commercial refrigeration and walk-in cooler or freezer applications.

The temperature display provides operators and service personnel with a convenient visual reference for monitored temperature conditions, while the integrated switch provides an accessible control point for the applicable equipment circuit. When the original display or switch assembly becomes damaged, unreadable, intermittent, or electrically compromised, replacing it with the correct Kason OEM 119670000A3 helps restore the original monitoring and control arrangement.

OEM Part Details & Specifications

• Manufacturer: Kason
• OEM Part Number: 119670000A3
• MPN: 119670000A3
• Part Type: Temperature Display & Switch Kit
• Voltage: 120V
• Display: Digital Temperature Display
• Application: Commercial Refrigeration Equipment
• Typical Equipment: Walk-In Coolers & Freezers / Commercial Refrigeration
• Function: Temperature Display & Equipment Switching

What the Kason 119670000A3 Kit Does

The Kason 119670000A3 provides a centralized temperature-display and switching point for compatible commercial refrigeration equipment. The display allows the monitored temperature to be viewed directly at the equipment, while the integrated switch serves the applicable control function established by the original equipment wiring.

Proper operation helps support:

• Convenient temperature monitoring
• Clear digital temperature indication
• Operator access to the applicable switching function
• Quick visual temperature checks
• Commercial refrigeration monitoring
• Walk-in cooler and freezer operation
• Dependable equipment service and maintenance

120V Commercial Refrigeration Application

The Kason 119670000A3 is identified for 120V applications. Voltage is an important part of replacement identification and should be confirmed against the original assembly, equipment data plate, and wiring information before installation.

Do not select another temperature display or switch assembly solely because it looks similar. Commercial refrigeration controls can have different voltage requirements, sensors, wiring arrangements, mounting dimensions, switch functions, and equipment applications.

Common Signs the Display or Switch Kit May Need Service

Qualified commercial refrigeration technicians may inspect the Kason 119670000A3 when troubleshooting conditions such as:

• Temperature display is blank
• Display is difficult or impossible to read
• Displayed temperature appears abnormal
• Display operates intermittently
• Display segments are missing or inconsistent
• Switch does not operate the connected circuit
• Switch operation is intermittent
• Switch feels loose or physically damaged
• Electrical terminals show signs of overheating
• Wiring or connectors are damaged
• Panel assembly is physically damaged
• Moisture or corrosion is visible around electrical connections

These symptoms do not automatically confirm failure of the complete assembly. Temperature-sensing components, wiring, connectors, supply voltage, and the circuit controlled by the switch should also be inspected before replacement.

Temperature Display Diagnosis

If the digital temperature display is blank or showing an unexpected value, technicians should evaluate the complete sensing and electrical circuit before replacing the assembly.

Depending on the installation, diagnosis may include checking:

• 120V electrical supply
• Temperature-sensing component
• Sensor wiring
• Electrical connectors
• Display wiring
• Loose terminals
• Moisture contamination
• Physical damage to the display
• Actual refrigerated-space temperature

Comparing the displayed temperature with an appropriate independent temperature measurement can help determine whether further investigation of the display or sensing system is required.

Switch Diagnosis

If the integrated switch does not control the applicable circuit correctly, the switch itself should not automatically be assumed to have failed.

Technicians may need to inspect:

• Incoming electrical supply
• Switch continuity
• Switch terminals
• Connected wiring
• Downstream electrical circuit
• Loose or overheated connections
• Associated equipment controls

The exact function of the switch should be confirmed from the original equipment wiring and installation before electrical testing or replacement.

Technician Checks Before Ordering

Before replacing the Kason 119670000A3 temperature display and switch kit, verify:

• OEM part number 119670000A3
• Kason manufacturer identification
• 120V electrical requirement
• Original display configuration
• Original switch configuration
• Panel mounting arrangement
• Mounting dimensions
• Electrical connector arrangement
• Temperature-sensing configuration
• Associated wiring
• Equipment model and serial information where available
• Original component markings

OEM part-number verification should be the primary method of identifying the replacement. Similar-looking refrigeration display assemblies may use different sensors, electrical connections, voltage ratings, switch configurations, or mounting arrangements.

Inspect the Temperature Sensor & Wiring

A temperature display depends on accurate sensing information. If the displayed value is incorrect or intermittent, technicians should inspect the sensing circuit before condemning the display assembly.

Look for:

• Damaged sensor wiring
• Loose sensor connections
• Pinched or cut wires
• Corroded connections
• Moisture contamination
• Improper sensor location
• Physical damage to the sensing component

A sensing or wiring problem can produce an incorrect display even when the display assembly itself is operational.

Inspect Electrical Connections

Before installing a replacement Kason 119670000A3, inspect the original assembly and connected wiring for evidence of electrical problems.

Check for:

• Loose terminals
• Burned connectors
• Discolored wiring
• Melted insulation
• Corrosion
• Damaged terminal ends
• Evidence of electrical arcing
• Moisture around electrical components

Any damaged connection or external electrical problem should be corrected before the replacement assembly is energized.

Walk-In Cooler & Freezer Applications

Kason refrigeration controls and door-area components are commonly used in commercial walk-in cooler, freezer, and cold-storage applications where operators require convenient equipment monitoring and control.

Commercial applications may include:

• Walk-in coolers
• Walk-in freezers
• Commercial cold-storage rooms
• Restaurants
• Supermarkets
• Convenience stores
• Commercial kitchens
• Hotels
• Schools
• Hospitals
• Institutional kitchens
• Food distribution facilities
• Foodservice operations

Installation & Electrical Safety Notes

Disconnect electrical power before servicing commercial refrigeration equipment. Follow applicable Kason and equipment-manufacturer service procedures.

Before removing the original assembly, photograph or document all wiring connections, sensor connections, switch terminals, mounting points, and panel orientation.

Compare the replacement Kason 119670000A3 with the original component before transferring wiring. Confirm the 120V electrical requirement and verify that all connections match the original installation.

After installation, restore power and verify:

• Temperature display powers on correctly
• Displayed temperature is reasonable for the refrigerated space
• Switch operates the intended circuit correctly
• No wiring or terminals overheat
• Assembly remains securely mounted
• All associated refrigeration functions operate normally

Commercial refrigeration electrical controls should be diagnosed and installed by qualified service personnel.

Why Correct OEM Identification Matters

Commercial refrigeration temperature displays and switch assemblies can look similar while having different voltage ratings, sensor configurations, wiring layouts, mounting dimensions, switch functions, and equipment applications.

Using Kason OEM part number 119670000A3 together with its 120V specification provides technicians and purchasing departments with a strong identification reference when comparing the replacement with the original assembly.

Always verify the OEM number, voltage, original component, wiring, sensor configuration, mounting arrangement, and equipment information before ordering.

Frequently Asked Questions

What is the Kason 119670000A3?

The Kason 119670000A3 is an OEM temperature display and switch kit for compatible commercial refrigeration applications.

What voltage is the Kason 119670000A3?

The assembly is identified for 120V operation.

What does the Kason 119670000A3 do?

It combines a digital temperature display with an integrated switching function for compatible commercial refrigeration equipment.

Is this used on walk-in coolers and freezers?

The assembly is intended for compatible commercial refrigeration applications, including applicable walk-in cooler and freezer installations. Verify the OEM number and original equipment configuration before ordering.

Why is my temperature display blank?

Possible causes include loss of electrical supply, wiring problems, sensor or connection issues, or failure within the display assembly. The complete circuit should be tested before replacement.

Why is the displayed temperature incorrect?

Possible causes include a sensor problem, damaged sensor wiring, incorrect sensor placement, connection problems, or a display-related fault. Compare the displayed value with an independent temperature measurement during diagnosis.

Can the switch fail while the temperature display still works?

Because the assembly contains separate display and switching functions, a problem affecting one function may not necessarily prevent the other from operating. The applicable circuits should be tested individually.

Can I replace this with any 120V temperature display?

No. Voltage alone does not establish compatibility. Verify OEM part number 119670000A3, sensor configuration, switch function, wiring, mounting dimensions, and original equipment application.

How do I confirm Kason 119670000A3 is the correct replacement?

Verify OEM part number 119670000A3, the 120V rating, original component markings, mounting configuration, wiring connections, sensor arrangement, and equipment identification before ordering.

Is professional installation recommended?

Yes. This assembly operates within commercial refrigeration electrical circuitry and should be diagnosed and installed by qualified commercial refrigeration service personnel.
