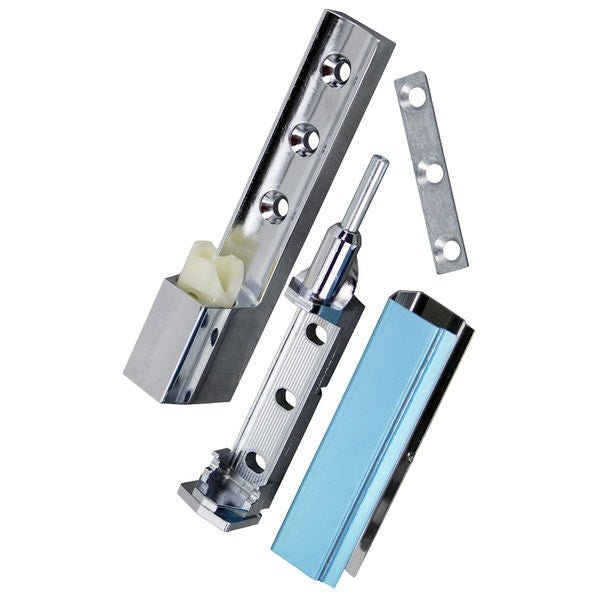

Edgemount Refrigerator Hinge – Double Adjustable, Chrome Finish

OEM Part Details

• OEM Number: 11467R00014
• OEM Status: VERIFIED
• MPN: 11467R00014
• SKU: 11467R00014
• Part Type: Edgemount Hinge

Product Overview

OEM Part Details OEM Part Number: 11467R00014 Part Type: Edgemount Hinge Finish: Chrome OEM Status: VERIFIED Product Overview Part number 11467R00014 is a double-adjustable, chrome edgemount hinge for commercial refrigeration equipment. This door hardware component supports the door at its mounting edge while providing the pivot action needed for regular opening and closing. Its adjustable configuration is intended to help establish the door position at the cabinet opening, an important consideration when the door must close evenly against its gasket. Reliable door movement matters in commercial refrigeration because the door, hinge, gasket, latch, closer, and mounting areas operate as one assembly. When the door is correctly positioned, the gasket can make more even contact with the cabinet frame and the latch can engage without unnecessary resistance. A worn, loose, bent, or damaged hinge may contribute to a door that sits unevenly, rubs the frame, or closes inconsistently. Those conditions should be inspected because they can affect door sealing and cabinet operation. This OEM-numbered edgemount hinge is intended for service work requiring part number 11467R00014. Before purchase, compare the removed component, mounting arrangement, orientation, adjustment configuration, and visible form with the replacement. Model-specific fitment is not stated in this record, so review the equipment model and serial number along with applicable equipment documentation.

Product Function

Product Function The 11467R00014 edgemount hinge carries the door at its mounting edge and creates the pivot point that guides door movement on commercial refrigeration equipment. Its double-adjustable configuration provides a means to position the door in relation to the cabinet opening. Correct door position can support smoother movement, reduce rubbing between the door and frame, and help the door meet the gasket surface more evenly. Although the hinge is not part of the refrigeration circuit, it has an important role in dependable cabinet-door operation. A properly supported door is better able to close consistently and allow the gasket, latch, and closer to perform their related functions. If the hinge or mounting area is worn, loose, bent, or damaged, inspect the complete door assembly rather than attributing the condition to one component without review.

Why Choose a Genuine OEM Replacement?

Why Choose a Genuine OEM Replacement? Using the verified OEM number 11467R00014 helps reduce wrong-part orders when replacing this edgemount hinge. The original part number provides a reliable reference for comparing the replacement with the removed component and with equipment documentation. Confirming the OEM number, hinge style, mounting arrangement, and door position before purchase is especially important for adjustable door hardware, where similar-looking hinges may not have the same configuration.

How This Part Works

How This Part Works This edgemount hinge connects the door and cabinet-side mounting location to form a controlled pivot. As the door opens and closes, the hinge supports door weight and guides the door's position relative to the cabinet frame. The double-adjustable design provides adjustment capability for door alignment when the installed door position requires service attention. Door alignment influences how the door approaches the cabinet opening. When the hinge, mounting points, gasket, latch, and closer are in suitable condition, the door can close with more consistent spacing and gasket contact. If one of these related components is worn or damaged, the door may not sit squarely at the opening. For that reason, door-closing concerns should include a review of the hinge condition, mounting areas, gasket contact, latch operation, closer condition, and the door and frame themselves. Part number 11467R00014 should be identified by its OEM number and compared with the original edgemount hinge before service. The product record does not provide mounting measurements, so physical comparison and equipment documentation remain important ordering checks.

Technician Service Tip

Technician Service Tip Before replacing a door hinge, compare the removed component with OEM part number 11467R00014 and inspect the door mounting points for looseness, wear, or visible damage. Check door alignment and gasket contact after any hinge adjustment. If the door does not close evenly, inspect the latch, closer, gasket, and cabinet-side mounting area as related door assembly components.

Common Failure Symptoms

• A door that sits low, appears uneven, or shifts at the cabinet opening may indicate hinge wear, looseness, or an alignment concern.
• Door movement that feels rough, restricted, or inconsistent can indicate that the hinge and its mounting areas should be inspected.
• A door that rubs the frame during opening or closing may indicate a door-position concern involving the hinge or related hardware.
• Uneven contact between the gasket and cabinet frame may indicate that door alignment and hinge adjustment need attention.
• Extra force needed to latch the door can indicate a condition involving the hinge, latch, closer, gasket, or door position.
• Moisture or frost around the door opening may indicate an air-leak condition that warrants inspection of the gasket and door hardware.
• Visible bending, corrosion, cracking, looseness, or damage at the hinge or mounting points can indicate a need for service attention.
• Uneven spacing between the door and cabinet frame may indicate that the hinge position or mounting condition should be evaluated.
• Repeated gasket wear along one portion of the door opening may indicate uneven door position or inconsistent gasket compression.
• A door that feels unstable while opening or closing may indicate worn, damaged, or loose hinge components.

Commercial Applications

Commercial Applications Part number 11467R00014 is used for commercial refrigeration equipment door service when the OEM number and original edgemount hinge configuration correspond to the equipment. Restaurant kitchens, foodservice maintenance teams, and commercial refrigeration service personnel may address door hardware when investigating uneven door position, poor closure, gasket contact concerns, or visible wear at the hinge and mounting areas. Commercial refrigeration doors are opened frequently and depend on coordinated operation among the hinge, gasket, latch, closer, door, cabinet frame, and mounting points. This double-adjustable edgemount hinge may be considered when inspection identifies a hinge-related condition and the original component matches part number 11467R00014. Confirm the equipment model and serial number, review applicable documentation, and compare the removed hinge before ordering because model-specific applications are not stated in this record.

Before You Order

• Match OEM part number 11467R00014 with the original component and applicable equipment documentation.
• Confirm that the required component is an edgemount hinge for commercial refrigeration equipment.
• Compare the original hinge mounting arrangement with the product image and removed component.
• Confirm that the door assembly requires a double-adjustable hinge configuration.
• Review the hinge orientation and the door location before ordering.
• Compare the chrome finish and visible hinge form with the original component when applicable.
• Check the equipment data plate for the equipment model and serial number.
• Inspect door-side and cabinet-side mounting points for wear, looseness, damage, or corrosion.
• Inspect the gasket, latch, and closer for related conditions that may affect door closure.
• Confirm that the door and cabinet frame do not show damage that could affect door alignment.

Related Components

• Door gasket: Inspect gasket condition and compression because an aligned door helps the gasket contact the cabinet frame evenly.
• Door latch: Inspect the latch when the door requires unusual force to close or does not remain closed consistently.
• Door closer: Inspect the closer when the door does not return smoothly toward the closed position.
• Hinge mounting hardware: Inspect mounting points and hardware for looseness, wear, or damage that can affect door alignment.
• Door assembly: Inspect the door edge and mounting area for damage that may prevent proper hinge adjustment.

Frequently Asked Questions

What is OEM part number 11467R00014?

OEM part number 11467R00014 identifies a double-adjustable chrome-finish edgemount hinge used on commercial refrigeration equipment door assemblies.

What does a double-adjustable edgemount hinge do?

A double-adjustable edgemount hinge supports the refrigeration door at its edge, provides its pivot point, and allows door position adjustment at the hinge mounting arrangement.

Why is door alignment important for commercial refrigeration equipment?

Correct door alignment helps the door meet the cabinet frame evenly. This supports consistent gasket contact, reliable door closure, and reduced opportunity for cabinet air leakage.

Can a worn hinge contribute to poor door sealing?

Yes. Wear, looseness, damage, or incorrect hinge position can allow a door to sit unevenly. Uneven positioning may reduce gasket compression in part of the door opening, so the hinge, gasket, latch, and door alignment should be inspected together.

What should be checked before ordering OEM part 11467R00014?

Match OEM part number 11467R00014 to applicable equipment documentation, compare the removed hinge with the product image, confirm the edgemount mounting arrangement and orientation, and verify that a double-adjustable hinge is required.

Is equipment-specific fitment provided for this edgemount hinge?

Equipment-specific fitment is not provided with this product record. Confirm the equipment data plate details and compare the original component, mounting points, orientation, and OEM part number before ordering.
