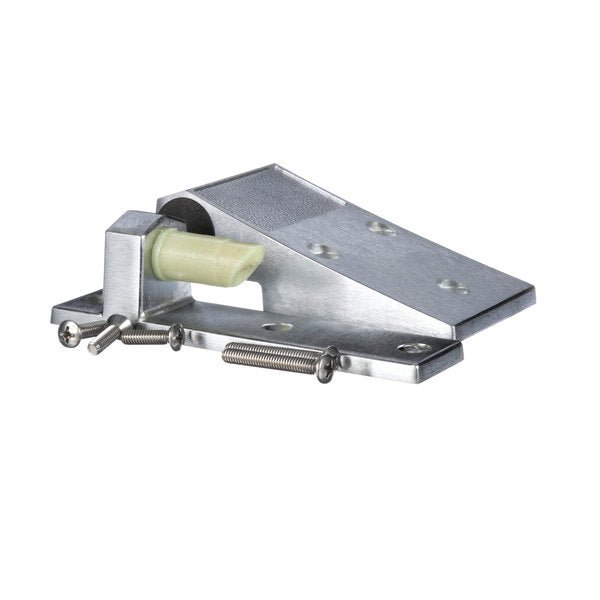

Bally Cam Rise Hinge – Reversible Left or Right with Optional Power Spring, Brushed Finish

OEM Part Details

• OEM Number: 015631
• OEM Status: VERIFIED
• MPN: 015631
• SKU: 015631
• Part Type: Hardware

Product Overview

Bally OEM part 015631 is a cam rise hinge used in a commercial refrigeration door assembly. The hinge provides a controlled pivot point for the door and helps establish its position as it opens, closes, and rests against the cabinet frame. Door alignment has a direct effect on normal latch engagement and on how evenly the door gasket meets the sealing surface, making hinge condition an important consideration when a door is difficult to close or appears out of position. This hardware item is identified with a brushed finish and a reversible left- or right-hand configuration. It is also identified with an optional power spring configuration. Those characteristics should be compared carefully with the removed component because door handing, mounting arrangement, and spring setup can affect whether the replacement is appropriate for the existing door assembly. A hinge that is worn, bent, loose, or configured differently from the original can contribute to rubbing, uneven door position, inconsistent closure, and added stress on the latch, gasket, and mounting points. Using verified OEM number 015631 gives commercial refrigeration service personnel a reliable reference when identifying this Bally cam rise hinge.

Product Function

The Bally 015631 cam rise hinge supports the refrigeration door at its pivot while guiding the door through its normal swing path. Its role is to help keep the door positioned correctly in relation to the cabinet opening, latch, strike, and gasket contact area. When the hinge and mounting points are in suitable condition, the door can approach the frame more evenly during closure. As a mechanical door component, the hinge should be considered alongside the full door assembly. Wear at the pivot, loose fasteners, damage around the mounting area, or an incorrect left-hand, right-hand, or spring configuration may affect door movement. Match OEM part number 015631, compare the original hinge, and confirm the door handing and mounting arrangement before ordering.

Why Choose a Genuine OEM Replacement?

Using OEM number 015631 helps identify the correct cam rise hinge for the original door hardware arrangement. Matching the manufacturer part number with the removed component reduces the risk of ordering a hinge with the wrong orientation, mounting arrangement, or spring configuration. An OEM-identified replacement also gives service teams a clear reference when documenting repairs and comparing related door hardware.

How This Part Works

Cam rise hinges use shaped surfaces around the pivot to influence the door as it moves through opening and closing. As the door swings, the hinge supports its weight and helps guide its position relative to the cabinet opening. This movement is important on commercial refrigeration equipment because the door must arrive at the frame in a position that allows the latch to engage normally and the gasket to contact the cabinet evenly. The hinge works as one part of a connected door assembly that includes the latch, strike, gasket, door panel, and mounting points. The cam rise action can assist the door as it returns toward its resting position. For assemblies using the identified optional power spring configuration, that spring arrangement may also affect normal door action. Pivot wear, damaged hardware, loosened mounting points, or a replacement hinge that differs from the original configuration can change door alignment. Inspecting the hinge together with the latch, strike, gasket, and door frame helps identify whether the concern is limited to the hinge or involves related door hardware.

Technician Service Tip

Support the door safely before evaluating or replacing hinge hardware. Compare OEM 015631 with the removed hinge, including left- or right-hand orientation, mounting arrangement, and whether the original assembly uses a power spring. Inspect hinge wear points, fasteners, latch engagement, and door alignment before returning the equipment to service.

Common Failure Symptoms

• A door that appears lower, higher, or uneven within the cabinet opening may indicate hinge wear or a mounting concern.
• Contact or rubbing between the door edge and cabinet frame can indicate that hinge alignment should be inspected.
• Difficulty closing the door fully may indicate a concern with the hinge, latch, strike, or overall door position.
• Latch engagement that changes from one closing attempt to another may indicate that the door is not reaching the strike consistently.
• Uneven gasket contact around the frame may indicate that door alignment and hinge condition require evaluation.
• Noticeable side-to-side movement or looseness at the door pivot may indicate worn hinge components or loose mounting hardware.
• Bent hinge sections, damaged mounting areas, corrosion, or loose fasteners should be inspected when door movement has changed.
• Moisture, frost, or apparent air leakage around the door opening may indicate that closure and gasket compression need attention.
• A door that does not return toward its usual resting position may indicate a cam rise hinge concern or an issue with the applicable power spring configuration.

Commercial Applications

OEM 015631 is identified for commercial refrigeration equipment door service. It is relevant to restaurant operations, foodservice maintenance teams, refrigeration service companies, and facilities that maintain refrigerated storage equipment. Door hardware deserves attention because a refrigeration door must align correctly with its latch and gasket to close consistently. When a hinge is being evaluated, the surrounding door assembly should also be considered, including the door seal, latch engagement, strike position, and other hinge hardware. Equipment-specific fitment is not supplied here, so confirm the original component and equipment data plate before ordering.

Before You Order

• Match OEM number 015631 to the original component and available equipment documentation.
• Compare the removed hinge with the product image and product identification.
• Confirm whether the door requires a left- or right-hand hinge orientation.
• Confirm whether the original hinge assembly uses the optional power spring configuration.
• Compare the hinge mounting arrangement and mounting-point locations before ordering.
• Inspect the door position in the cabinet opening for sagging, rubbing, or uneven clearance.
• Check latch and strike engagement, since hinge alignment can affect door closure.
• Inspect the door gasket contact area for uneven compression or visible gaps.
• Use the equipment data plate, serial number, and service records to confirm the correct door hardware application.

Related Components

• Door hinges: Inspect the opposite or companion hinge for wear, looseness, and alignment concerns that can affect the replacement hinge’s performance.
• Door latch and strike: Check latch engagement because an aligned hinge and correctly positioned strike work together to keep the door closed.
• Door closer hardware: Evaluate related closing hardware where present, since it can affect how the door returns to the cabinet opening.
• Door gasket: Inspect the gasket for compression loss, tears, or uneven contact that may continue to affect door sealing after hinge service.
• Hinge fasteners and mounting areas: Check for loose hardware, damaged mounting surfaces, or movement that can change door alignment.

Frequently Asked Questions

What is OEM part number 015631?

OEM part number 015631 identifies a reversible cam rise hinge for a commercial refrigeration door assembly.

What does a cam rise hinge do on a commercial refrigeration door?

A cam rise hinge supports the door at its pivot and guides its movement relative to the cabinet opening. Proper hinge position helps the door align with the latch, strike, and gasket contact surface.

Can OEM 015631 be used on either a left-hand or right-hand door?

This hinge is identified as reversible for left- or right-hand use. Compare the removed component, its mounting arrangement, and the door orientation before ordering.

Does OEM 015631 have a power spring?

The product identification notes an optional power spring configuration. Confirm whether the original hinge assembly uses that configuration before selecting the replacement.

Can a worn door hinge affect the door seal?

Yes. Hinge wear, looseness, damage, or misalignment can change door position and may reduce even gasket compression against the cabinet frame.

What related parts should be checked when replacing a cam rise hinge?

Inspect the other door hinge, hinge fasteners, latch and strike alignment, door position, gasket contact, and the hinge mounting area. These components work together to support reliable door closure.

How should I confirm that OEM 015631 is the correct hinge?

Match OEM part number 015631 to the original component, then compare the door handing, mounting arrangement, hinge condition, and applicable power spring configuration. Confirm the equipment model and serial number with service documentation when available.
