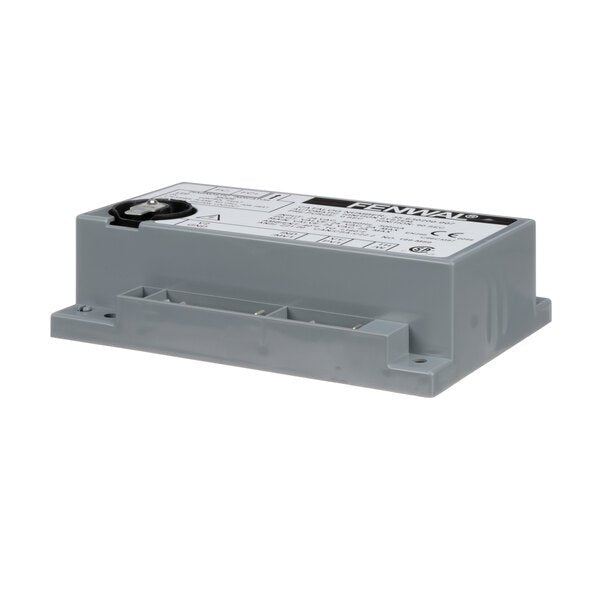

Middleby Marshall 27161-0005 OEM Fenwal Ignition Module 24V

Middleby Marshall 27161-0005 OEM Fenwal Ignition Module – 24V

The Middleby Marshall 27161-0005 Ignition Module is an OEM 24V Fenwal ignition control designed for compatible Middleby Marshall commercial cooking equipment. The module works within the gas ignition and safety-control system to manage the applicable ignition sequence and burner-control response required by the equipment.

Reliable ignition control is critical to commercial gas cooking equipment. A module that is electrically damaged, fails to initiate ignition, does not respond correctly to flame-safety feedback, or operates intermittently can contribute to no-heat conditions, unsuccessful ignition attempts, burner shutdowns, or inconsistent equipment operation.

When qualified diagnosis confirms ignition-control failure, replacing the original component with the correct Middleby Marshall OEM 27161-0005 helps restore the ignition-control configuration intended for compatible equipment.

OEM Part Details & Specifications

• Manufacturer: Middleby Marshall
• OEM Part Number: 27161-0005
• MPN: 27161-0005
• Part Type: Ignition Module
• Ignition Control Brand: Fenwal
• Voltage: 24V
• Application: Commercial Cooking Equipment
• System: Gas Ignition / Burner Control
• Function: Ignition Sequence & Flame-Safety Control

What the Middleby Marshall 27161-0005 Ignition Module Does

The Middleby Marshall 27161-0005 Fenwal ignition module operates as part of the equipment's gas burner control system. During a call for heat, the ignition system must coordinate the applicable control inputs, ignition sequence, gas-valve operation, and flame-safety functions required by the equipment design.

Proper ignition-module operation helps support:

• Reliable burner ignition sequencing
• Proper response to a call for heat
• Coordination with applicable gas-control components
• Flame-safety monitoring
• Consistent burner operation
• Controlled shutdown when required by the safety circuit
• Dependable commercial cooking performance

24V Fenwal Ignition Control

The Middleby Marshall 27161-0005 is identified as a 24V Fenwal ignition module. Both the voltage and ignition-control configuration are important replacement specifications.

Do not substitute another ignition module simply because it looks similar. Commercial gas ignition controls can differ in:

• Control voltage
• Ignition sequence
• Flame-sensing method
• Trial-for-ignition timing
• Terminal configuration
• Connector layout
• Gas-valve control arrangement
• Equipment application

Use OEM part number 27161-0005 and the original control markings as the primary identification references.

Common Signs of an Ignition Module Problem

Qualified commercial cooking-equipment technicians may inspect the Middleby Marshall 27161-0005 when troubleshooting conditions such as:

• Burner does not ignite
• Equipment has no heat
• Ignition sequence does not begin
• Ignition attempts occur but burner does not remain operating
• Burner lights and then shuts down
• Ignition operates intermittently
• Module does not respond to a call for heat
• Gas valve does not receive the expected control response
• Flame-safety sequence does not complete normally
• Electrical terminals show signs of overheating
• Wiring or connectors are damaged
• Ignition control shows visible heat or electrical damage

These symptoms do not automatically confirm ignition-module failure. Gas supply, gas valves, ignition electrodes, flame-sensing components, transformers, thermostats, high-limit controls, wiring, connectors, and other safety devices can create similar symptoms. The complete ignition and gas-control system should be diagnosed before replacing the module.

Diagnosing a No-Ignition Condition

A Middleby Marshall oven or conveyor cooking appliance that does not ignite does not automatically have a failed 27161-0005 module.

Depending on the equipment configuration, qualified technicians may need to verify:

• Incoming electrical supply
• 24V control power
• Call-for-heat signal
• Ignition-module input and output
• Ignition electrode condition
• Ignition wiring
• Gas-valve operation
• Incoming gas supply
• Gas pressure
• Flame-sensing circuit
• High-limit and safety controls
• Associated wiring and connectors

Testing the complete ignition sequence helps prevent unnecessary replacement of a functioning module when another component is responsible for the no-heat condition.

Burner Lights but Will Not Stay On

If the burner ignites but shuts down shortly afterward, technicians should evaluate the flame-safety system before condemning the ignition module.

Possible inspection points include:

• Flame-sensing component
• Flame-sensor position
• Flame-sensor cleanliness
• Burner flame condition
• Grounding
• Ignition-module connections
• Gas pressure
• Burner condition
• Associated safety-control circuit

A flame-sensing or grounding problem can produce symptoms similar to an ignition-module failure.

Inspect the Ignition Electrode & Flame-Sensing System

The ignition module depends on related ignition and sensing components to complete the burner sequence correctly.

Technicians should inspect applicable:

• Ignition electrode
• Electrode gap and position
• High-voltage ignition lead
• Flame-sensing component
• Sensor wiring
• Burner grounding
• Electrical connectors
• Burner condition

Damaged or incorrectly positioned ignition components should be corrected before replacing the control module.

Ignition Module vs. Gas Valve Diagnosis

The ignition module and gas valve perform different but related functions.

• Ignition Module: Coordinates the applicable ignition and flame-safety sequence.
• Gas Valve: Controls gas flow to the burner when electrically commanded and permitted by the safety system.

A burner that will not ignite may have an ignition-control problem, gas-valve problem, gas-supply problem, or another safety-circuit issue. Proper testing is required before replacing either component.

Technician Checks Before Ordering

Before replacing the Middleby Marshall 27161-0005 ignition module, verify:

• OEM part number 27161-0005
• Complete Middleby Marshall equipment model
• Equipment serial number
• 24V control requirement
• Original Fenwal ignition-module identification
• Terminal arrangement
• Connector configuration
• Mounting arrangement
• Ignition electrode configuration
• Flame-sensing arrangement
• Gas-valve control wiring
• Associated safety controls
• Original wiring connections

OEM part number, voltage, and ignition-control configuration should be primary identification points. Similar-looking ignition modules can use different internal timing, terminal layouts, flame-sensing systems, and equipment-specific operating logic.

Inspect Wiring & Electrical Connections

Ignition-system wiring operates in a demanding commercial cooking environment where heat, vibration, grease, and repeated service can affect electrical connections.

Inspect for:

• Loose terminals
• Burned connectors
• Heat-damaged wiring
• Melted insulation
• Broken conductors
• Corrosion
• Loose grounds
• Damaged ignition leads
• Evidence of electrical arcing

External electrical or grounding problems should be corrected before the replacement ignition module is energized.

Commercial Cooking Applications

Middleby Marshall commercial cooking equipment is commonly used in high-volume foodservice operations where dependable burner ignition and consistent cooking performance are essential.

• Pizzerias
• Restaurants
• Quick-service restaurants
• Commercial kitchens
• Convenience stores
• Hotels
• Schools
• Universities
• Institutional kitchens
• Corporate cafeterias
• Foodservice production lines
• High-volume cooking operations

Installation & Safety Notes

Commercial gas ignition systems involve electrical power, fuel gas, ignition voltage, and safety controls. Service should be performed by qualified commercial cooking-equipment personnel.

Disconnect electrical power and shut off the applicable gas supply before servicing the equipment. Follow Middleby Marshall and applicable Fenwal service procedures.

Before removing the original 27161-0005 module, document:

• Every wire and terminal position
• Module mounting orientation
• Ignition-lead connection
• Flame-sensing connection
• Gas-valve control wiring
• Grounding connections
• Related safety-control wiring

Compare the replacement module with the original control before installation.

After installation, qualified personnel should verify that the equipment progresses through the proper ignition sequence, establishes stable burner operation, responds correctly to flame-safety conditions, and shuts down appropriately when required.

Why Correct Middleby Marshall OEM Ignition Control Identification Matters

Commercial cooking ignition modules can appear nearly identical while using different voltages, timing sequences, flame-sensing arrangements, connector layouts, and gas-control logic.

Using Middleby Marshall OEM part number 27161-0005, together with the 24V and Fenwal identification, provides technicians and purchasing departments with strong replacement-reference points.

Always verify the complete equipment model, serial number, original ignition module, electrical requirements, terminal arrangement, and ignition-system configuration before ordering.

Frequently Asked Questions

What is Middleby Marshall 27161-0005?

Middleby Marshall 27161-0005 is an OEM Fenwal ignition module used in compatible commercial gas cooking equipment.

What voltage is Middleby Marshall 27161-0005?

The ignition module is identified for 24V operation.

Is 27161-0005 a Fenwal ignition control?

Yes. This listing identifies Middleby Marshall 27161-0005 as a Fenwal ignition module.

What does the ignition module do?

The module coordinates the applicable burner ignition and flame-safety sequence during a call for heat.

Can a bad ignition module cause a no-heat condition?

Yes. A failed ignition control can prevent successful burner operation. Gas supply, valves, ignition components, safety controls, wiring, and flame sensing should also be checked.

Why does the burner ignite and then shut off?

Possible causes include flame-sensing problems, grounding issues, gas-pressure problems, burner conditions, ignition-control issues, or another safety-circuit fault.

Can a bad gas valve cause the same symptoms as a bad ignition module?

Yes. The ignition module may command burner operation while a failed gas valve prevents proper gas flow. Both systems should be diagnosed before replacement.

Should the ignition electrode be checked?

Yes. Electrode condition, position, wiring, and related flame-sensing components should be inspected during ignition-system diagnosis.

Can I replace 27161-0005 with any 24V ignition module?

No. Voltage alone does not establish compatibility. Verify OEM part number 27161-0005, Fenwal control type, terminal arrangement, ignition sequence, flame-sensing configuration, model, and serial number.

How do I confirm Middleby Marshall 27161-0005 is correct?

Verify OEM part number 27161-0005, the complete Middleby Marshall model and serial number, 24V requirement, original Fenwal module, wiring, mounting, and ignition-system configuration before ordering.

Is professional installation recommended?

Yes. Commercial gas ignition controls should be diagnosed and installed by qualified foodservice-equipment service personnel familiar with gas and electrical safety systems.
