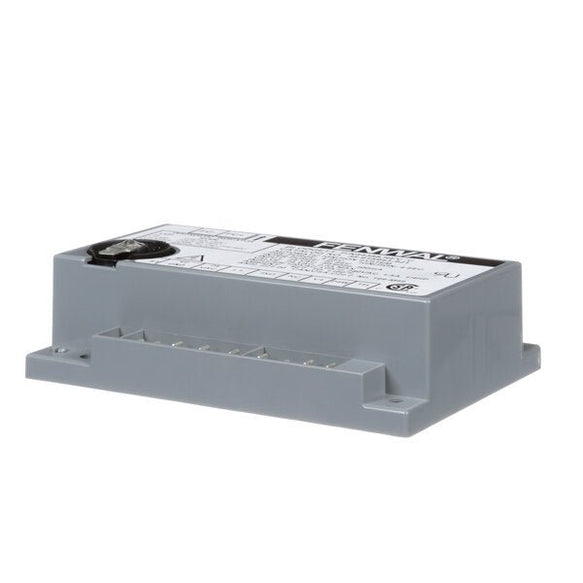

Blodgett 54388 Ignition Module Fenwal HV100G
Sku: 54388
-
Regular price
-
$390.00 USD
-
Sale price
-
$390.00 USD
-
Regular price
-
-
Unit price
- per
Availability : In Stock
Before ordering, compare the part number, measurements, mounting points, voltage, and equipment model. Send us photos and your model/serial number if you want help checking the match.
Help other repair pros find PartsDirectOnline
If our team helped you find the right refrigeration part, a quick Google review helps other technicians and restaurant owners shop with confidence.
Check compatibility before ordering
Match the part number, model number, dimensions, and mounting points before checkout. If the part is used across multiple refrigeration units, compare your existing part to the product photos and SKU above.
Refrigeration parts FAQ
How do I confirm this part fits my unit?
Use the SKU, measurements, brand, and product photos to compare against the part currently installed on your refrigerator, freezer, prep table, merchandiser, or ice machine.
Can I order this for a commercial refrigeration repair?
Yes. PartsDirectOnline specializes in commercial refrigeration replacement parts for service companies, restaurants, convenience stores, and maintenance teams.
What should I do if I am unsure about compatibility?
Contact the store with your model number, serial number, photos, and measurements before ordering so the team can help verify the best match.
Blodgett 54388 Fenwal HV100G Ignition Module
The Blodgett 54388 is a Fenwal HV100G ignition module used in the burner-control circuit of commercial Blodgett ovens. It is responsible for the high-voltage spark output and the flame-proving logic that determines whether the burner can remain on. In a gas oven, the ignition module acts as the coordinator between the heat call, spark electrode, gas valve, and flame signal.
When the oven calls for heat, the module starts an ignition trial. It sends spark to the electrode and coordinates gas valve operation according to the oven safety sequence. Once the burner lights, the module must sense flame through the flame-rectification path. If it does not detect flame, it interrupts the burner operation to prevent unsafe gas flow. That means a weak ground, dirty flame rod, poor burner flame, or damaged wire can cause the same symptoms as a failed module.
Failure Symptoms Technicians See
- Igniter does not spark during startup.
- Spark is present, burner lights, then shuts off after a few seconds.
- Module locks out during trial for ignition.
- Intermittent heat loss after vibration or heat expansion.
- Gas valve output is missing even though the thermostat is calling.
- Flame signal is unstable because of grounding or electrode contamination.
Diagnostic Approach
A technician should measure input voltage to the module, verify ground integrity, inspect the spark electrode and wire, check gas valve output, and clean the burner/flame-sensing area. Flame rectification depends on a clean flame path and solid ground. If all inputs are correct and the module will not generate spark, will not energize output, or will not recognize flame, the 54388 module is a likely cause.
FAQ
What does the Blodgett 54388 module do?
It produces spark and monitors flame signal in the commercial oven ignition sequence.
Why does the oven spark but not stay lit?
The module may not be reading flame, or the flame-sense electrode, ground, burner, or wiring may be faulty.
What is the Fenwal HV100G reference?
It identifies the ignition module style associated with this Blodgett part number.
What related components should be inspected?
Spark electrode, flame sensor, gas valve, burner, ground path, thermostat call, and wiring harness.
