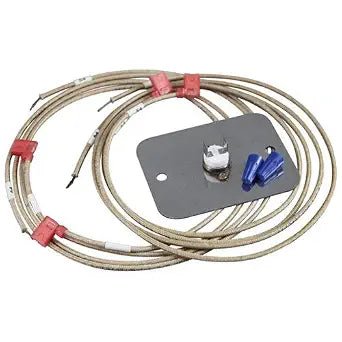

Vulcan Hart 00-958827-000G3 OEM Oven High-Limit Replacement Assembly

Vulcan Hart 00-958827-000G3 OEM Oven High-Limit Replacement Assembly

The Vulcan Hart 00-958827-000G3 Oven High-Limit Replacement Assembly is an OEM safety-control component designed for compatible Vulcan commercial cooking equipment. The high-limit assembly provides critical over-temperature protection by interrupting the heating circuit when equipment temperature exceeds the designed safe operating limit.

Unlike the oven's normal operating thermostat or electronic temperature controller, the 00-958827-000G3 high limit functions as a safety device. It is not intended to regulate normal cooking temperature. If an abnormal over-temperature condition occurs, the high-limit control helps stop continued heating and protects the equipment from excessive heat.

OEM Part Details

• Manufacturer: Vulcan Hart
• OEM Part Number: 00-958827-000G3
• Part Type: Oven High-Limit Replacement Assembly
• Function: Over-Temperature Safety Control
• Application: Commercial Cooking Equipment
• Component Type: High-Limit Safety Assembly

What the Vulcan 00-958827-000G3 High Limit Does

The high-limit assembly monitors temperature within its designated sensing location and provides a separate layer of protection from the oven's normal operating temperature control. If temperature rises beyond the high limit's designed threshold, the safety circuit responds to help prevent continued heating.

This safety function helps protect:

• Commercial oven heating systems
• Internal electrical components
• Temperature-control components
• Associated wiring and terminals
• Equipment exposed to an abnormal over-temperature condition

Operating Thermostat vs. High-Limit Safety Control

It is important to distinguish the high-limit control from the oven's normal operating thermostat.

The operating thermostat or electronic temperature controller regulates temperature during normal cooking. The high-limit control is a separate safety device designed to respond when temperature rises beyond the intended operating range.

A high-limit trip can therefore be a symptom of another equipment problem rather than proof that the high-limit assembly itself has failed.

Common High-Limit Replacement Situations

Qualified commercial cooking-equipment technicians may inspect or replace the Vulcan Hart 00-958827-000G3 when diagnosing conditions such as:

• Oven will not heat after an over-temperature event
• High-limit safety circuit remains open
• Heating system shuts down unexpectedly
• Repeated high-limit activation
• Intermittent heating associated with the safety circuit
• Visible damage to the high-limit assembly
• Damaged sensing components
• Loose, burned, or overheated electrical terminals
• Damaged capillary or sensing assembly
• High-limit control fails electrical testing

These conditions should be properly diagnosed before replacing the component. If the high limit has opened because the oven actually overheated, the cause of the excessive temperature must also be identified and corrected.

Why Does an Oven High Limit Trip?

A high-limit control may activate because of an actual over-temperature condition elsewhere in the equipment. Depending on the oven configuration, technicians may need to investigate:

• Failed or inaccurate operating thermostat
• Temperature-control malfunction
• Relay or contactor remaining energized
• Temperature sensor or sensing problem
• Incorrect sensing-component placement
• Wiring or electrical faults
• Control-system malfunction
• Heating components remaining energized
• Airflow or circulation problems where applicable

Repeatedly replacing or resetting a high-limit control without correcting the cause of overheating can result in continued equipment shutdowns and may create an unsafe operating condition.

Technician Checks Before Ordering

Before replacing the Vulcan 00-958827-000G3 high-limit assembly, technicians should verify:

• OEM part number 00-958827-000G3
• Equipment model and serial number
• Original high-limit configuration
• Mounting arrangement
• Electrical terminal configuration
• Sensing assembly condition
• Capillary routing where applicable
• High-limit circuit continuity
• Operating thermostat or temperature-controller operation
• Temperature sensors where applicable
• Relay and contactor operation
• Associated wiring and connectors
• Evidence of overheating or electrical damage

OEM part-number verification should be the primary method of identifying the correct replacement. High-limit controls that appear physically similar may have different temperature ratings, sensing configurations, mounting arrangements, or electrical characteristics.

Inspect the Sensing Assembly Carefully

The sensing portion of a mechanical high-limit control is critical to proper operation. During diagnosis and installation, inspect the sensing assembly for physical damage and verify that it is positioned and routed correctly.

Look for conditions such as:

• Kinked or crushed capillary tubing
• Sharp bends
• Damaged sensing bulb
• Incorrect sensing-bulb position
• Loose mounting
• Heat damage
• Damage caused during previous service

Do not cut, splice, sharply bend, or modify a capillary or sensing assembly. Damage can affect the operation of the temperature safety control.

Commercial Oven Applications

Compatible Vulcan commercial cooking equipment using high-limit safety controls is commonly installed in demanding foodservice environments including:

• Restaurants
• Hotels
• Schools
• Hospitals
• Universities
• Institutional kitchens
• Corporate cafeterias
• Catering operations
• Correctional facilities
• High-volume commercial kitchens

Installation & Service Notes

Disconnect electrical power and follow the equipment manufacturer's service procedures before servicing the oven. Allow hot surfaces and internal components to cool to a safe temperature before beginning work.

Before removing the original high-limit assembly, document the location of electrical connections, mounting hardware, and the routing and position of the sensing components.

Install the replacement assembly using the correct mounting arrangement and carefully route the sensing assembly without kinking, crushing, sharply bending, cutting, or otherwise damaging it.

Before returning the oven to normal operation, determine whether another component or control problem caused the original high-limit activation. After installation, test the equipment through an appropriate operating cycle and verify normal temperature control and safety-system operation.

Because this component is part of an oven safety circuit, diagnosis and installation should be performed by qualified commercial cooking-equipment service personnel.

Why Correct OEM High-Limit Identification Matters

Commercial oven high-limit controls can look similar while having different temperature limits, capillary configurations, sensing components, mounting arrangements, and electrical characteristics.

Using Vulcan Hart OEM part number 00-958827-000G3 as the primary identifier helps reduce incorrect-part orders and ensures the replacement is being compared with the component specified for the equipment.

Always verify the OEM number, equipment model, serial number, and original high-limit assembly before ordering.

Frequently Asked Questions

What is the Vulcan Hart 00-958827-000G3?

The 00-958827-000G3 is an OEM oven high-limit replacement assembly used as an over-temperature safety control in compatible Vulcan commercial cooking equipment.

Is this the normal oven thermostat?

No. The high limit is a safety control. The normal operating thermostat or temperature controller regulates cooking temperature, while the high limit provides protection against an abnormal over-temperature condition.

Can a bad high limit cause a no-heat condition?

An open high-limit safety circuit can prevent continued heating. However, technicians should determine whether the high limit itself has failed or opened because of an actual overheating condition.

Why does my Vulcan oven keep tripping the high limit?

Repeated high-limit activation can indicate an underlying temperature-control, sensor, relay, contactor, wiring, heating, or airflow problem. The root cause should be diagnosed before replacing components.

Should I replace the operating thermostat when replacing the high limit?

Not automatically. The operating thermostat should be tested to determine whether it is controlling temperature correctly. Replace only components confirmed to be defective or outside the manufacturer's specifications.

Can a stuck relay or contactor trip the high limit?

If a heating-control component remains energized when it should open, excessive temperature may result and cause the high-limit safety system to activate.

Should I inspect the sensing assembly before installation?

Yes. Inspect the sensing components and capillary where applicable for kinks, crushing, sharp bends, physical damage, and correct positioning.

Can I bypass the high-limit control?

No. A high-limit control is an equipment safety device and should not be bypassed for normal operation.

How do I confirm 00-958827-000G3 is the correct replacement?

Verify OEM part number 00-958827-000G3, the equipment model and serial number, original high-limit configuration, and applicable Vulcan service or parts information before ordering.

Is professional installation recommended?

Yes. Because the 00-958827-000G3 is part of an over-temperature safety circuit, diagnosis and replacement should be performed by qualified commercial cooking-equipment service personnel.
