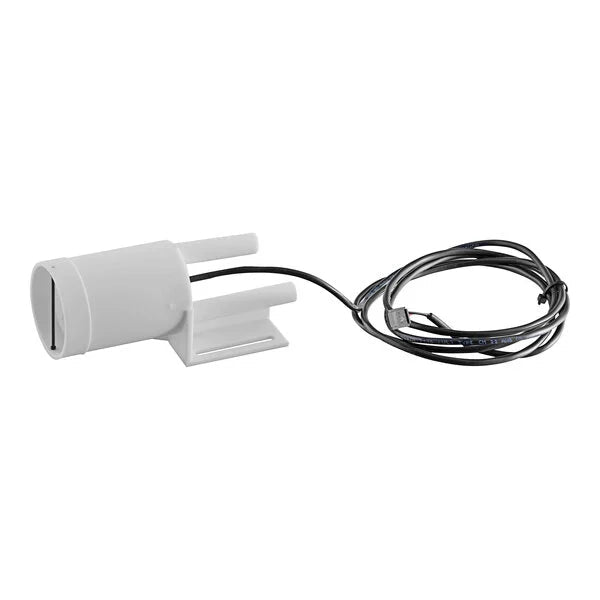

Hoshizaki 4A3624-01 OEM Float Switch

Hoshizaki 4A3624-01 OEM Float Switch for Commercial Ice Machines

The Hoshizaki 4A3624-01 Float Switch is an OEM water-level sensing and switching component designed for compatible Hoshizaki commercial ice machines. The switch responds to changes in float position and provides electrical feedback to the machine control system so the equipment can respond correctly to changing water-level conditions during its operating sequence.

Reliable float-switch operation is important to commercial ice production because water level, fill control, freeze-cycle operation, and machine sequencing depend on accurate feedback from the water system. A float switch that becomes stuck, contaminated, damaged, worn, electrically open, or intermittent can contribute to incorrect water levels, abnormal filling, interrupted operating sequences, or inconsistent ice production.

When qualified diagnosis confirms float-switch replacement is required, using the correct Hoshizaki OEM 4A3624-01 helps restore the water-level sensing and switching configuration intended for compatible Hoshizaki ice machines.

OEM Part Details

• Manufacturer: Hoshizaki
• OEM Part Number: 4A3624-01
• MPN: 4A3624-01
• SKU: 4A3624-01
• Part Type: Float Switch
• Application: Commercial Ice Machines
• System: Water-Level / Fill Control System
• Function: Float Position Sensing & Electrical Switching

Compatible Hoshizaki Models

The Hoshizaki 4A3624-01 OEM Float Switch is listed for compatible Hoshizaki commercial ice machines including:

• CF1A-FS
• CR1A-FS
• KM-1200SAE
• KM-1200SRE
• KM-1200SWE
• KM-1300NRF
• KM-1300SAF
• KM-1300SAF3
• KM-1300SAH
• KM-1300SAH3
• KM-1300SRF
• KM-1300SRF3
• KM-1300SRH
• KM-1300SRH3
• KM-1300SWF
• KM-1300SWF3
• KM-1300SWH
• KM-1300SWH3
• KM-1301SAH
• KM-1301SAH3
• KM-1301SAJ
• KM-1301SAJ-E
• KM-1301SAJ3
• KM-1301SRH
• KM-1301SRH-E
• KM-1301SRH3
• KM-1301SRJ
• KM-1301SRJ-E
• KM-1301SRJ3
• KM-1301SWH
• KM-1301SWH-E
• KM-1301SWH-P
• KM-1301SWH3
• KM-1301SWJ
• KM-1301SWJ3
• KM-1400SWH-M
• KM-1400SWH3-M
• KM-150BAF
• KM-1600
• KM-1600SRE
• KM-1600SRE3
• KM-1600SRF1
• KM-1600SRF3
• KM-1600SRH
• KM-1600SRH3
• KM-1600SWE

Compatibility Note: Hoshizaki equipment can vary by serial number, auxiliary code, production date, and factory configuration. Always verify OEM part number 4A3624-01, the complete machine model, serial number, auxiliary code where applicable, original float-switch configuration, connector, and mounting arrangement before ordering.

What the Hoshizaki 4A3624-01 Float Switch Does

The Hoshizaki 4A3624-01 float switch works with the machine's water system to provide control feedback based on float position. As the water level changes, the float mechanism moves and the switch changes electrical state according to the equipment's design.

Proper float-switch operation helps support:

• Reliable water-level feedback
• Consistent fill-cycle operation
• Proper response to changing water conditions
• Normal freeze-cycle sequencing
• Reduced overfill or underfill conditions
• Reliable communication with the machine control system
• Consistent commercial ice production

Common Signs of a Failing Float Switch

Qualified commercial ice-machine technicians may inspect the Hoshizaki 4A3624-01 when troubleshooting conditions such as:

• Machine does not recognize the expected water level
• Fill cycle continues longer than expected
• Water level remains too low
• Machine appears to overfill
• Float does not move freely
• Float sticks in one position
• Switch operates intermittently
• Electrical continuity is inconsistent
• Machine does not progress through the expected operating sequence
• Ice production becomes inconsistent
• Scale or mineral buildup restricts float movement
• Electrical connector is loose or corroded
• Wiring is damaged or pinched
• Physical damage is visible on the switch assembly

These symptoms do not automatically confirm float-switch failure. Water inlet valves, water pressure, water pumps, control boards, wiring, connectors, scale accumulation, and other water-system components can produce similar symptoms. The complete water-level and fill system should be diagnosed before replacing the switch.

Float Movement & Position Matter

The float mechanism must move freely through its intended range. A functional electrical switch may still provide incorrect feedback if the float is restricted by scale, debris, physical damage, or improper positioning.

Technicians should inspect for:

• Free float movement
• Correct float position
• Physical damage
• Scale buildup
• Mineral deposits
• Sediment or debris
• Mechanical binding
• Incorrect mounting
• Interference from surrounding components

A restricted float mechanism should be corrected according to applicable Hoshizaki service procedures before the switch itself is condemned.

Scale & Mineral Buildup

Float switches operate in close contact with the machine's water system, making scale and mineral accumulation important diagnostic considerations. Mineral deposits can interfere with float movement and cause water-level behavior that resembles an electrical switch failure.

Inspect the assembly for:

• Mineral deposits
• Scale accumulation
• Sediment
• Water residue
• Corrosion
• Contamination around moving components
• Debris affecting float travel

Water-system cleaning and maintenance should follow applicable Hoshizaki procedures. A switch that remains unreliable after proper inspection and cleaning may require replacement.

Diagnosing Incorrect Water Level

If a Hoshizaki ice machine has too much or too little water, technicians should evaluate the complete water-management system rather than replacing the 4A3624-01 solely based on the symptom.

Depending on the machine configuration, diagnosis may include checking:

• Float-switch movement
• Switch continuity
• Actual water level
• Water inlet valve operation
• Incoming water supply
• Water pressure
• Water pump operation
• Water reservoir condition
• Scale accumulation
• Associated wiring
• Connector condition
• Machine control-board response

Testing the complete system helps determine whether the Hoshizaki 4A3624-01 requires replacement or whether another component is responsible for the water-level problem.

Float Switch vs. Water Inlet Valve

The float switch and water inlet valve perform different functions within the Hoshizaki ice-machine water system.

• Float Switch: Provides electrical feedback related to water-level condition.
• Water Inlet Valve: Physically controls incoming water flow when commanded.

If the machine does not fill correctly, both areas may require inspection. Replacing a float switch will not correct a restricted or leaking inlet valve, and replacing the inlet valve will not correct a failed or mechanically sticking float switch.

Float Switch vs. Water Pump

The water pump circulates water already present within the applicable ice-making system, while the float switch provides water-level-related control feedback.

When troubleshooting water-system problems, technicians may need to inspect:

• Actual water level
• Float-switch operation
• Water inlet valve
• Water pump
• Water distribution system
• Water reservoir
• Control-board inputs and outputs

Inspect Wiring & Electrical Connections

A float switch can provide reliable feedback only when the associated electrical circuit remains intact. Damaged wiring or poor connector contact can create intermittent symptoms even if the float mechanism moves correctly.

Inspect for:

• Loose connectors
• Corroded terminals
• Broken wiring
• Pinched conductors
• Damaged insulation
• Moisture contamination
• Loose crimps
• Connector damage
• Incorrect wire routing

Any wiring or connection problem should be corrected before installing a replacement Hoshizaki 4A3624-01.

Diagnosing an Intermittent Float Switch

Intermittent operation can result from either a mechanical or electrical condition. A float switch may appear to function correctly at one moment and fail when vibration, water level, float position, or wiring position changes.

Qualified technicians may need to verify:

• Float movement through its full range
• Switch continuity
• Connector stability
• Harness condition
• Mounting security
• Scale accumulation
• Control-board response
• Water-level conditions

Testing the complete sensing circuit helps distinguish a failed switch from mechanical binding, contamination, or an electrical connection problem.

Technician Checks Before Ordering

Before replacing the Hoshizaki 4A3624-01 float switch, verify:

• OEM part number 4A3624-01
• Complete Hoshizaki ice-machine model
• Equipment serial number
• Auxiliary code where applicable
• Original float-switch identification
• Float configuration
• Mounting arrangement
• Electrical connector configuration
• Wire routing
• Float movement
• Water inlet valve operation
• Water pump operation
• Scale or contamination around the assembly
• Control-board connection

OEM part-number verification should be the primary identification method. Float switches can appear similar while having different mechanical configurations, switching characteristics, connectors, mounting arrangements, and ice-machine applications.

Water Quality & Preventive Maintenance

Commercial ice machines operate continuously with facility water, making water quality an important factor in float-switch reliability. Scale, minerals, sediment, and other deposits can interfere with moving components and water-system operation over time.

When repeated water-level problems occur, technicians should evaluate:

• Water filtration
• Filter replacement intervals
• Machine cleaning frequency
• Scale accumulation
• Incoming water quality
• Water-system maintenance history

Proper water-system maintenance can help support reliable float movement and consistent Hoshizaki ice-machine operation.

Commercial Ice Machine Applications

Compatible Hoshizaki equipment using the 4A3624-01 is designed for demanding commercial ice-production environments including:

• Restaurants
• Bars
• Hotels
• Supermarkets
• Convenience stores
• Schools
• Hospitals
• Universities
• Institutional kitchens
• Corporate cafeterias
• Catering operations
• Commercial foodservice facilities

Installation & Service Notes

Disconnect electrical power and follow applicable Hoshizaki service procedures before servicing commercial ice-making equipment. Shut off the water supply where required by the repair procedure.

Before removing the original 4A3624-01 switch, document the float position, mounting arrangement, electrical connection, wire routing, and relationship to surrounding water-system components.

Compare the replacement switch with the original component before installation. Confirm that the float moves freely and that wiring is routed without tension, pinching, or interference.

After installation, restore the equipment to operation and observe the applicable fill and ice-making sequence.

Verify that:

• The float moves freely
• The switch remains securely mounted
• Electrical connections remain secure
• The machine recognizes the intended water-level condition
• The fill sequence operates normally
• No intermittent switching occurs
• The machine progresses normally through its operating sequence

Commercial ice-machine water-level and electrical controls should be diagnosed and installed by qualified foodservice-equipment service personnel.

Why Correct Hoshizaki OEM Float Switch Identification Matters

Commercial ice-machine float switches can look similar while having different mechanical configurations, switching characteristics, electrical connectors, mounting arrangements, and equipment applications.

Using Hoshizaki OEM part number 4A3624-01 together with the verified equipment model provides technicians and purchasing departments with stronger identification points when comparing the replacement with the original switch.

Always verify the complete machine model, serial number, auxiliary code where applicable, original float switch, connector, mounting configuration, and applicable Hoshizaki service information before ordering.

Frequently Asked Questions

What is Hoshizaki 4A3624-01?

Hoshizaki 4A3624-01 is an OEM float switch used for water-level sensing and switching in compatible Hoshizaki commercial ice machines.

Which Hoshizaki models use the 4A3624-01 float switch?

The Hoshizaki 4A3624-01 is listed for compatible CF1A-FS, CR1A-FS, KM-1200, KM-1300, KM-1301, KM-1400, KM-150, and KM-1600 configurations, including the complete 46-model fitment list shown above.

Does Hoshizaki 4A3624-01 fit KM-1200 ice machines?

It is listed for compatible KM-1200SAE, KM-1200SRE, and KM-1200SWE equipment. Always verify the complete model, serial number, and auxiliary code before ordering.

Does Hoshizaki 4A3624-01 fit KM-1300 models?

It is listed for multiple compatible KM-1300 configurations including KM-1300NRF, KM-1300SAF, KM-1300SAF3, KM-1300SAH, KM-1300SAH3, KM-1300SRF, KM-1300SRF3, KM-1300SRH, KM-1300SRH3, KM-1300SWF, KM-1300SWF3, KM-1300SWH, and KM-1300SWH3.

Does Hoshizaki 4A3624-01 fit KM-1301 ice machines?

It is listed for numerous compatible KM-1301 configurations including SAH, SAJ, SRH, SRJ, SWH, and SWJ variants shown in the complete model list above.

Does Hoshizaki 4A3624-01 fit KM-1600 equipment?

It is listed for compatible KM-1600, KM-1600SRE, KM-1600SRE3, KM-1600SRF1, KM-1600SRF3, KM-1600SRH, KM-1600SRH3, and KM-1600SWE equipment.

What does the Hoshizaki float switch do?

The switch responds to changes in float position and provides electrical feedback related to water-level conditions within the machine.

Can a bad float switch cause a Hoshizaki ice machine not to make ice?

Yes. Incorrect water-level feedback can interfere with normal machine sequencing and ice production. Other water-system components should also be inspected.

Can a sticking float cause the machine to overfill?

A restricted or incorrectly responding float can contribute to abnormal water-level control. The inlet valve and complete water-control system should also be evaluated.

Can scale affect the Hoshizaki 4A3624-01?

Yes. Mineral buildup and debris can restrict float movement and interfere with normal switch operation.

Can a wiring problem make the float switch appear defective?

Yes. Loose connectors, corrosion, broken conductors, or damaged wiring can interrupt switch feedback even when the mechanical float assembly is functional.

How do I confirm Hoshizaki 4A3624-01 is the correct replacement?

Verify OEM part number 4A3624-01, the complete Hoshizaki model, serial number, auxiliary code where applicable, original switch, mounting arrangement, connector, and wiring configuration before ordering.

Is professional installation recommended?

Yes. Commercial ice-machine water-level and electrical controls should be diagnosed and installed by qualified foodservice-equipment service personnel.
